DCG100-6 Kalmar diesel forklift specs & dimensions (2016 - 2021)

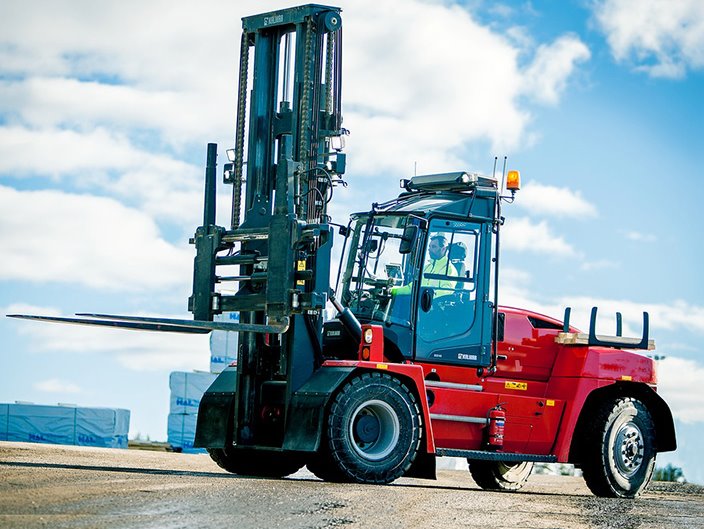

The Kalmar DCG100-6 is a diesel forklift manufactured since 2016. It has a weight of 15.6 tons and a nominal load at the center of…

The Kalmar DCG100-6 is a diesel forklift manufactured since 2016. It has a weight of 15.6 tons and a nominal load at the center of gravity of 10 tons. The lifting height reaches up to 5 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 57 percent. The total width of the forklift is 2480 mm, and it has a turning radius of 4.18 meters. The construction height is 2895 mm.

Diesel Forklifts Kalmar DCG100-6

Technical specs - DCG100-6 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
10 t
Centre of gravity
600 mm
Standard tyres
4x/2
Transmission type
W
Weight
15.6 t
Total width
2480 mm
Construction height
2895 mm
Turning radius
4.18 m
Lifting height
5 m
Travel speed with / without load
28/29 km/h
Hoisting with / without load
0.45/0.5 m/s
Lowering with load
0.4/0.4 m/s
max. climbing ability
57 %
Model series
DCG
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
129 kW
Displacement
5.9 l
Revolutions at max torque
2200 rpm
Max. torque
800/1400 Nm
No. of cylinders
6
Emission level
IV

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
