Kalmar DCF 90-45 E7 diesel forklift specs (2012 - 2018)

Rate this machine now!

The Kalmar DCF 90-45 E7 is a diesel forklift manufactured by Kalmar from 2012 to 2018. It has a weight of 39.575 tons and a nomina... Read more

The Kalmar DCF 90-45 E7 is a diesel forklift manufactured by Kalmar from 2012 to 2018. It has a weight of 39.575 tons and a nominal load at the center of gravity of 9 tons. The forklift can lift loads up to a height of 18.74 meters and has a center of gravity at 1220 mm. It has a maximum climbing ability of 29 percent and a total width of 4000 mm. The turning radius of the forklift is 6 meters and it has a construction height of 4000 mm.

Technical specs - DCF 90-45 E7 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal load at COG 9 t
  • Centre of gravity 1220 mm
  • Standard tyres 4x/2
  • Transmission type W
  • Weight 39.575 t
  • Total width 4000 mm
  • Construction height 4000 mm

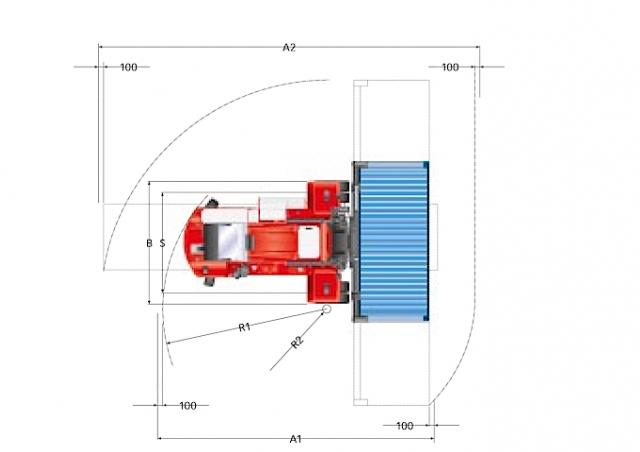

  • Turning radius 6 m
  • Lifting height 18.74 m
  • Travel speed with / without load 27/30 km/h
  • Hoisting with / without load 0.45/0.65 m/s
  • Lowering with load 0.6/0.55 m/s
  • max. climbing ability 29 %
  • Model series DCF
  • Engine manuf. Volvo
  • Engine type TAD760VE
  • Engine power 180 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
