DCF 100-45 E8 Kalmar diesel forklift specs & dimensions (2012 - 2018)

Name: Kalmar DCF 100-45 E8 Diesel Forklifts
Brand: Kalmar

The Kalmar DCF 100-45 E8 is a diesel forklift manufactured from 2012 to 2018. It has a weight of 44 tons and a nominal load at the…

The Kalmar DCF 100-45 E8 is a diesel forklift manufactured from 2012 to 2018. It has a weight of 44 tons and a nominal load at the center of gravity of 10 tons. The lifting height reaches up to 21.3 meters, with a center of gravity at 1220 mm. It has a maximum climbing ability of 29 percent. The total width of the forklift is 4500 mm, and it has a turning radius of 6.2 meters. The construction height is 4000 mm.

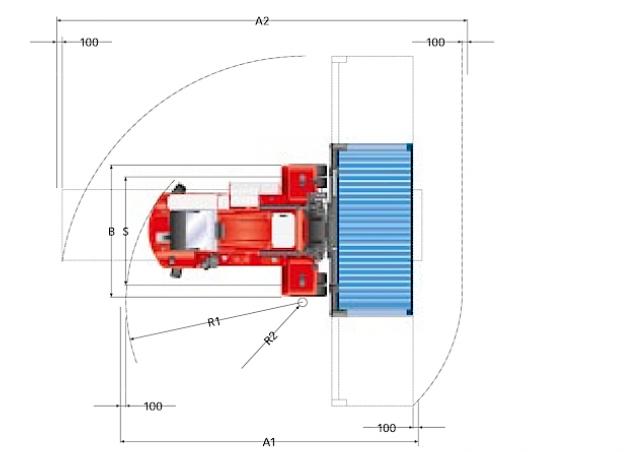

Kalmar DCF 100-45 E8 Dimensions and Size

DCF 100-45 E8

Years of manufacture: 2012—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DCF 100-45 E8 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 10 t

Centre of gravity: 1220 mm

Standard tyres: 4x/2

Transmission type: W

Weight: 44 t

Total width: 4500 mm

Construction height: 4000 mm

Turning radius: 6.2 m

Lifting height: 21.3 m

Travel speed with / without load: 27/30 km/h

Hoisting with / without load: 0.45/0.65 m/s

Lowering with load: 0.6/0.55 m/s

max. climbing ability: 29 %

Model series: DCF

Engine manuf.: Volvo

Engine type: TAD760VE

Engine power: 180 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

DCF 100-45 E8 Kalmar Specification for Europe (EN)
