DFG 690 Jungheinrich diesel forklift specs & dimensions (2008 - 2017)

The Jungheinrich DFG 690 is a diesel forklift manufactured from 2008 to 2017. It has a weight of 12.2 tons and a nominal load at t…

The Jungheinrich DFG 690 is a diesel forklift manufactured from 2008 to 2017. It has a weight of 12.2 tons and a nominal load at the center of gravity of 9 tons. The lifting height reaches up to 5 meters, with a center of gravity at 600 mm. It has a maximum climbing ability of 28 percent. The total width of the forklift is 2020 mm, and the turning radius is 3.65 meters. The construction height is 3010 mm.

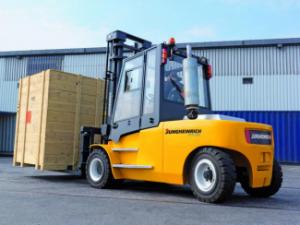

Diesel Forklifts Jungheinrich DFG 690
Diesel Forklifts Jungheinrich DFG 690
Jungheinrich DFG 690 Dimensions and Size
Diesel Forklifts Jungheinrich DFG 690
Diesel Forklifts Jungheinrich DFG 690
Jungheinrich DFG 690 Dimensions and Size

Technical specs - DFG 690 Jungheinrich

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
9 t
Centre of gravity
600 mm
Standard tyres
SE 6
Transmission type
W
Weight
12.2 t
Total width
2020 mm
Construction height
3010 mm
Turning radius
3.65 m
Lifting height
5 m
Travel speed with / without load
22.4/22.6 km/h
Hoisting with / without load
0.4/0.6 m/s
Lowering with load
0.6/0.36 m/s
max. climbing ability
28 %
Model series
DFG
Engine manuf.
Perkins
Engine type
1104D-E44T
Engine power
91 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Jungheinrich DFG 690 overview

Drive

Service

Low service costs through good accessibility: Tiltable cabin – hinged at the rear and hydraulically operated. Simple access for daily maintenance (oil and water). Long service intervals of 500 hours.


Precise steering

The maximum in steering comfort and highest safety through: Hydrostatic steering for extremely light and precise steering. Steering axle with integrated steer cylinder.


Brake

Two independent brake systems on the front wheels: Foot brake: Hydraulic servo, maintenance free, encapsulated multi-disc, oil immersed brake with zero assistance. Parking brake: Electro-hydraulic disc brake operated via a button located on the display.


Reliable hydraulics

Fine filtration in the fluid return circuit. 180-l hydraulic tank integrated into the frame. Ventilation of hydraulic tank via filter. Pressure relief valves protect against excess pressure and overloading.


Handling

Strong masts

Slender mast profiles with lift cylinders concealed behind allow an extra-wide field of view. Optimised visibility through free-view fork carriage. Fork carriage in accordance with FEM/ ISO–2328–4A.


Cabin & Equipment

Ergonomic cabin

Comfortable, performance orientated ergonomics: Easy truck entry and exit; low step position, easily seen from above. Operator cabin completely sealed from engine and suppressed against noise and vibration. Smoothly adjustable and mechanically cushioned comfort seat (air cushioning optional). Height and tilt adjustable steering column. Hydraulic levers fixed to the operator seat (SOLO-PILOT) automatically move with all seat adjustments. Travel direction switch on the steering column (optional) available on the accelerator or integrated into the MULTI-PILOT control lever. Extensive, comfortable leg room with combined brake/inch pedal. Excellent visibility through the mast due to the location of hydraulic cylinders behind the mast profiles. Comfortable operation in all weather conditions with the comprehensively equipped standard cabin. Specially designed roof and cabin sides offering exceptional all-round visibility. 180 degrees swivelling (left) seat (optional).
