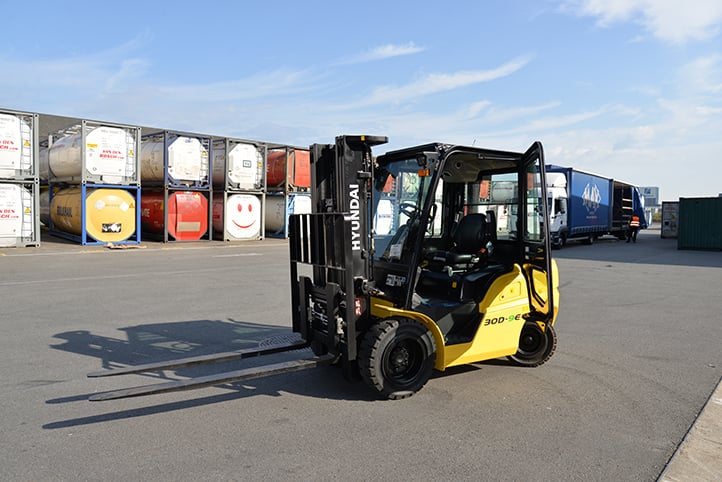

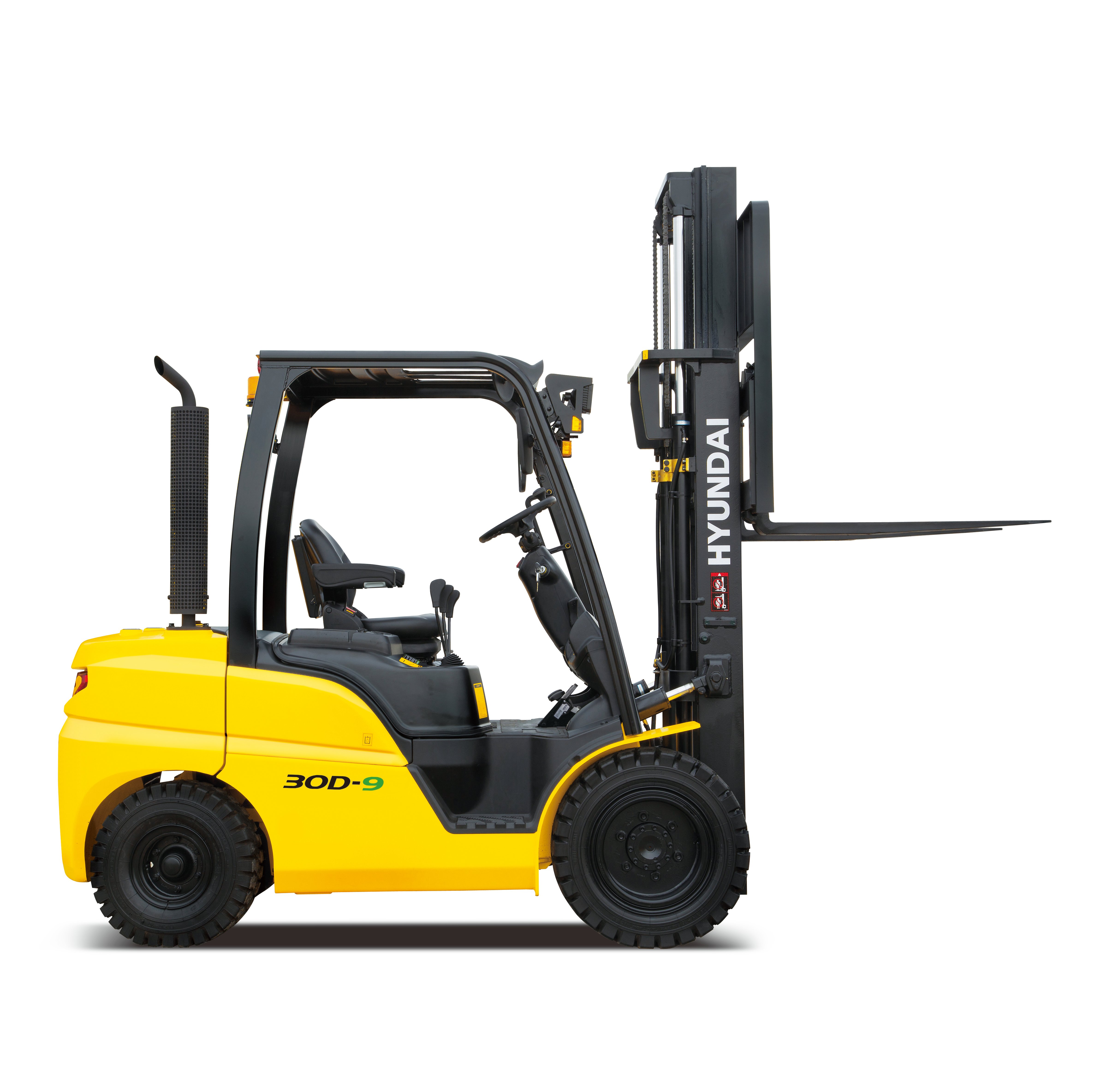

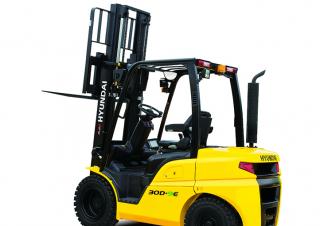

30D-9E Hyundai diesel forklift specs & dimensions (2019 - 2023)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Hyundai live at
Technical specs - 30D-9E Hyundai
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 3 t
- Centre of gravity
- 500 mm
- Standard tyres
- P 2x/2
- Weight
- 4.282 t
- Total width
- 1228 mm
- Construction height
- 2190 mm
- Turning radius
- 2.413 m
- Lifting height
- 3.305 m
- Travel speed with / without load
- 20 km/h
- Hoisting with / without load
- 0.47/0.53 m/s
- Lowering with load
- 0.5/0.45 m/s
- max. climbing ability
- 31.4 %
- Model series
- 9
- Engine manuf.
- Kubota
- Engine type
- V3307
- Engine power
- 50 kW
More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
