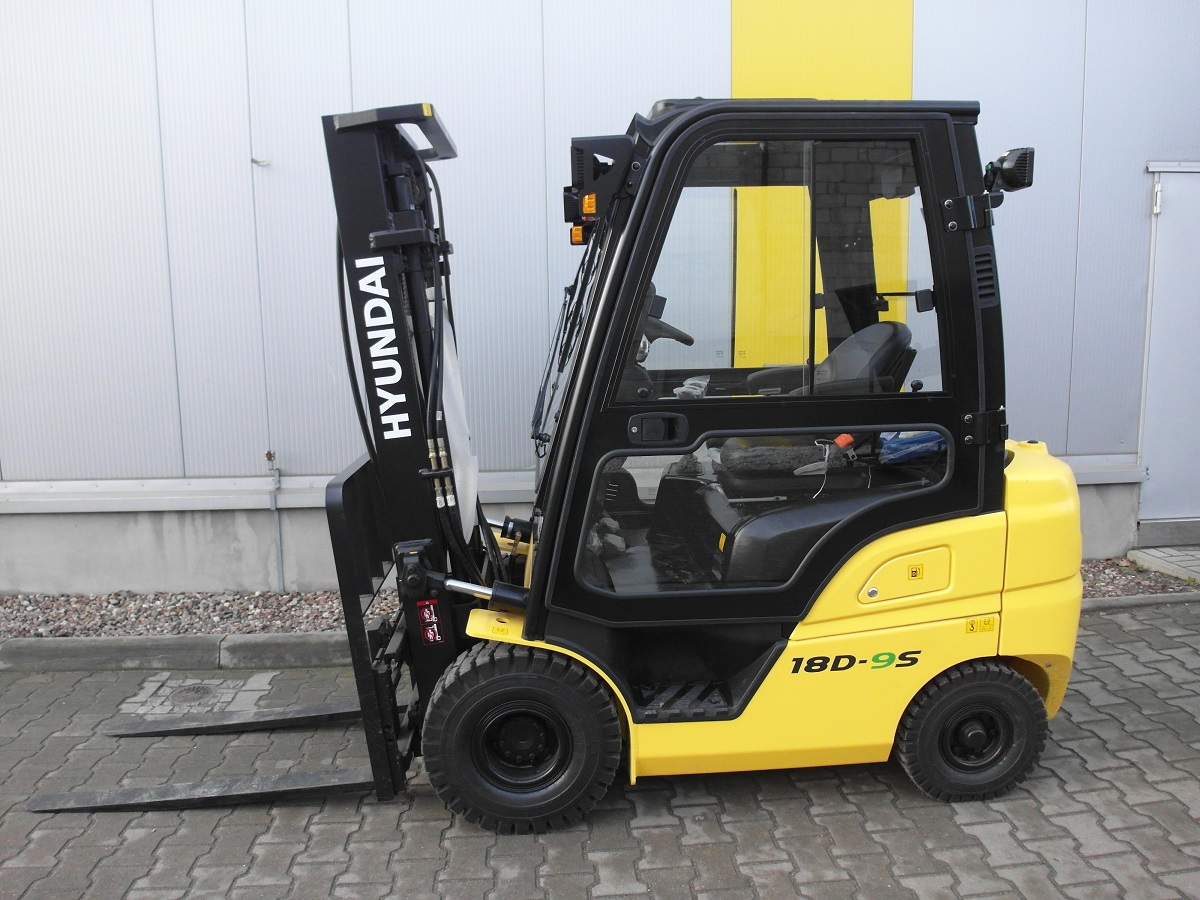

    Hyundai 18D-9S diesel forklift specs (2019 - 2021)

    Rate this machine now!

    Nominal load at COG: 1.8t – Standard tyres: P 2x/2 – Centre of gravity: 500mm – Weight: 3.05t – Total width: 1070mm – Construction... Read more

    Nominal load at COG: 1.8t – Standard tyres: P 2x/2 – Centre of gravity: 500mm – Weight: 3.05t – Total width: 1070mm – Construction height: 2155mm

    Hyundai is the manufacturer of the 18D-9S diesel forklift. The production years for this model are (2019 - 2021). Find here detailed specs for 18D-9S diesel powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Hyundai.

    Technical specs - 18D-9S Hyundai


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 1.8 t
    • Standard tyres P 2x/2
    • Centre of gravity 500 mm
    • Weight 3.05 t
    • Total width 1070 mm
    • Construction height 2155 mm
    • Turning radius 2.03 m
    • Lifting height 3.325 m
    • Travel speed with / without load 19.4 km/h
    • Hoisting with / without load 0.62/0.65 m/s
    • Lowering with load 0.5/0.45 m/s
    • max. climbing ability 29.5 %
    • Engine manuf. Kubota
    • Engine type V2203
    • Engine power 30.8 kW

    More technical details, like: transmission type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
