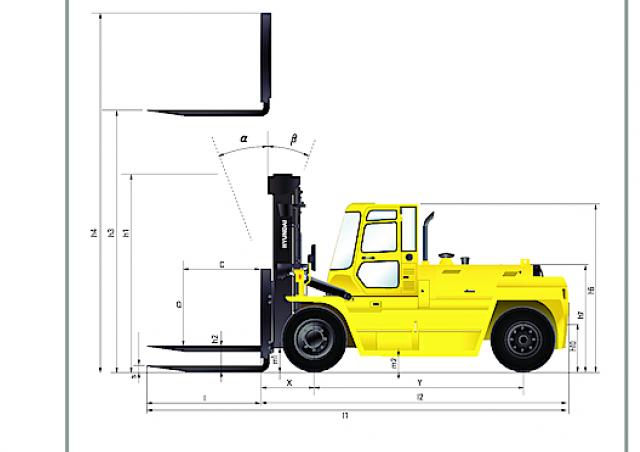

180 D 7 E Hyundai diesel forklift specs & dimensions (2011 - 2019)

Excellent night work

Various positions of work lamps provide the operator with better visibility, higher level of comfort and safer operation. Front working lamps: 2 pc. on fender, 2 pc. on mast (2) Rear working lamps: 2 pc. on cab

Protector for hub bolts

By applying protector for preventing bolts breakage, durability has been improved. (Same size of front and rear wheels).

Powerful Engine

The six cylinders turbo-charged engine is built for power, reliability and economy. This engine meets EPA Tier 3 and EU stage IIIA emission regulation.

Engine Control Mode

According to the application, the operator can select the preferable engine mode with a single switch. STANDARD Mode: Fuel efficient mode for light applications. POWER Mode: Full power mode for heavy-duty applications.

Cruise Control

Maintain automatically a desired engine speed with no accelerator pedal input in order to reduce fuel consumption and operator fatigue.

Hydraulic Driven Cooling System

The minimum fuel consumption and low noise are available by applying hydraulic cooling fan sensing intake air temperature, transmission oil temperature, coolant temperature and hydraulic temperature.

Auto Parking

The parking brake is engaged automatically when the transmission is in neutral position and the operator leaves the seat.

Wet Disc Brake System

Wet disc brakes improve the brake performance and make your service intervals longer. Enclosed brakes are protected against dust and water.

Compact Fuse Box for Easy Inspection

Equipped with a manual priming pump, the fuel prefilter with water-separator will keep water and contaminations out of the fuel system.

Full-automatic transmission

The Full-automatic transmission offers easy and convenient handling with soft, smooth shifting. The operator can select two types of automatic modes: (1st~3rd, 2nd~3rd).

Load Indicator (Option)

A load can be placed on the fork and can be accurately weighed by measuring the hydraulic pressure.

Increased mast tilting angle

Utilizing the mast tilting angle of 10 degrees forward and 10 degrees backward, the operator can perform (un)loading jobs safe and rapidly.

Quick response of hydraulic levers

Only minimal operator's effort is required for precise, safe and productive control. (3-Levers : standard // 4 or 5-Levers : option).

OPSS (Operator Presence Sensing System)

Mast tilting, lifting and lowering operation is not possible when the operator is not seated in the normal position.

Cabin Tilting automatic system

Cabin tilting electronic system makes servicing of all power train components quick and easy. An electrically assisted hydraulic actuated cylinder tilts operator cabin to left side about 65 degrees for easy access to inside of truck components.

Easily adjustable suspension seat

An attractive and adjustable seat, based on human engineering design, provides great comfort, safety and durability. (Head rest - option)

High-capacity air conditioner & heater

An integrated air conditioner and heater saves space inside the cabin. With its high capacity, the operator is, both in summer and winter, able to create a pleasant operating environment.
