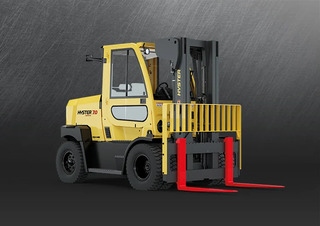

H7.0FTS 9 Hyster diesel forklift specs & dimensions (2022 - 2026)

Name: Hyster H7.0FTS 9 Diesel Forklifts
Brand: Hyster

The Hyster H7.0FTS 9 is a diesel forklift manufactured by Hyster since 2022. It has a weight of 11.884 tons and a nominal load at …

The Hyster H7.0FTS 9 is a diesel forklift manufactured by Hyster since 2022. It has a weight of 11.884 tons and a nominal load at the center of gravity of 7 tons. The forklift can lift loads up to a height of 3 meters, with a center of gravity at 900 mm. It has a maximum climbing ability of 29 percent. The hoisting and lowering speeds are 0 m/s and 0.41 m/s respectively. The forklift has a total width of 2082 mm and can travel at speeds of up to 24 km/h with or without a load. It has a turning radius of 3.145 meters and a construction height of 2712 mm.

H7.0FTS 9

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H7.0FTS 9 Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 7 t

Centre of gravity: 900 mm

Standard tyres: L 4x/2

Transmission type: EW

Weight: 11.88 t

Total width: 2082 mm

Construction height: 2712 mm

Turning radius: 3.15 m

Lifting height: 3 m

Travel speed with / without load: 22.3/23.7 km/h

Hoisting with / without load: 0.44/0.45 m/s

Lowering with load: 0.41/0.37 m/s

max. climbing ability: 26 %

Model series: H

Engine manuf.: Kubota

Engine type: V3800

Engine power: 82 kW

Displacement: 3.769 l

Revolutions at max torque: 2400 rpm

Max. torque: 373,1/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
