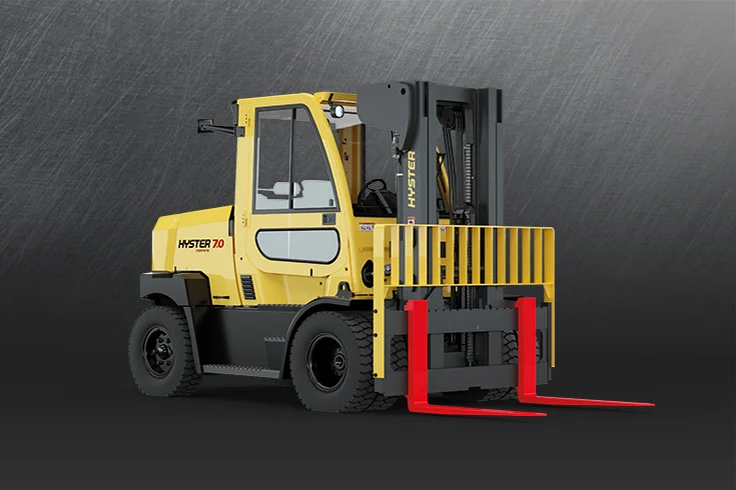

H7.0FTS Hyster diesel forklift specs & dimensions (2022 - 2026)

Name: Hyster H7.0FTS Diesel Forklifts
Brand: Hyster

The Hyster H7.0FTS is a diesel forklift manufactured by Hyster since 2022. It has a weight of 10.191 tons and a nominal load capac…

The Hyster H7.0FTS is a diesel forklift manufactured by Hyster since 2022. It has a weight of 10.191 tons and a nominal load capacity of 7 tons at the center of gravity. The forklift can lift loads up to a height of 2.94 meters, with a center of gravity at 600mm. It has a maximum climbing ability of 32 percent. The hoisting speed is 0m/s with or without a load, while the lowering speed with a load is 0.58m/s. The forklift has a total width of 2082mm and can travel at a speed of 24km/h with or without a load. It has a turning radius of 3.08 meters and a construction height of 2540mm.

H7.0FTS

Years of manufacture: 2022—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H7.0FTS Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 7 t

Centre of gravity: 600 mm

Standard tyres: L 4x/2

Transmission type: W

Weight: 10.19 t

Total width: 2082 mm

Construction height: 2540 mm

Turning radius: 3.08 m

Lifting height: 2.94 m

Travel speed with / without load: 20.3/21.6 km/h

Hoisting with / without load: 0.35/0.47 m/s

Lowering with load: 0.58/0.53 m/s

max. climbing ability: 22 %

Model series: H

Engine manuf.: Kubota

Engine type: V3800

Engine power: 55 kW

Displacement: 3.769 l

Revolutions at max torque: 2200 rpm

Max. torque: 308.5/1400 Nm

No. of cylinders: 4

Emission level: IV

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
