Lectura specs Forklifts Diesel Forklifts Diesel Forklifts Hyster Hyster H40FT specifications

Technical specs - H40FT Hyster

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG 1.81 t
Standard tyres Pneumatic, 2x/2
Centre of gravity 610 mm
Weight 3.47 t
Total width 1157 mm
Construction height 2170 mm
Turning radius 2.15 m
Lifting height 3.29 m
Travel speed with / without load 18.0/18.2 km/h
Hoisting with / without load 0.62/0.64 m/s
Lowering with load 0.58/0.50 m/s
max. climbing ability 42/32 %
Engine manuf. Kubota
Engine type 2.4L
Engine power 43 kW
Engine power 57 HP
Displacement 2.43 l
Revolutions at max torque 1500 rpm
Max. torque 198 Nm
No. of cylinders 4
Emission level T4F
Transmission type ###
Dimension lxwxh ###
Cylinder bore x stroke ###
Weight ###

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download data sheets - Hyster H40FT

X

What do you think about this machine?

Compare Hyster H40FT with other models

Press 1 image

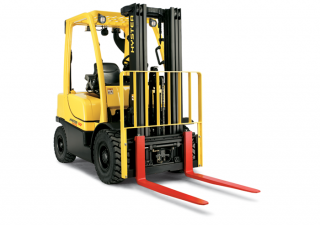

Hyster H40FT
