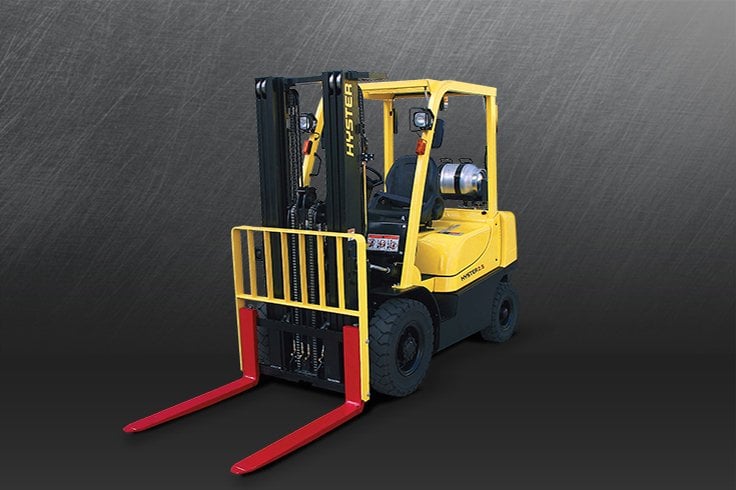

H3.5XT Hyster diesel forklift specs & dimensions (2022 - 2026)

Name: Hyster H3.5XT Diesel Forklifts
Brand: Hyster

The Hyster H3.5XT is a diesel forklift manufactured by Hyster since 2022. It has a weight of 5.055 tons and a nominal load at the …

The Hyster H3.5XT is a diesel forklift manufactured by Hyster since 2022. It has a weight of 5.055 tons and a nominal load at the center of gravity of 3.5 tons. The forklift can lift loads up to a height of 3.06 meters, with a center of gravity at 500mm. It has a maximum climbing ability of 21 percent. The hoisting speed with or without a load is 0m/s, while the lowering speed with a load is 0.52m/s. The forklift has a total width of 1490mm and can travel at a speed of 17km/h with or without a load. It has a turning radius of 2.415 meters and a construction height of 2150mm.

H3.5XT

Years of manufacture: 2022—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - H3.5XT Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.5 t

Centre of gravity: 500 mm

Standard tyres: 28x9-15 SOLID (6.00-15 SOLID)/6.50-10 SOLID

Weight: 5.055 t

Total width: 1490 mm

Construction height: 2150 mm

Turning radius: 2.415 m

Lifting height: 3.06 m

Travel speed with / without load: 17.5/18 km/h

Hoisting with / without load: 0.475/0.49 m/s

Lowering with load: 0.52 m/s

max. climbing ability: 21 %

Model series: H

Engine manuf.: Yanmar

Engine type: 4TNE98

Engine power: 43 kW

Displacement: 3.319 l

Revolutions at max torque: 1600 rpm

Max. torque: 189 Nm

No. of cylinders: 4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

H3.5XT Hyster Specification for Europe (EN)
