CPCD 18 Heli diesel forklift specs & dimensions (2000 - 2008)

The Heli CPCD 18 is a diesel forklift manufactured by Heli from 2000 to 2008. It weighs 2.89 tons and has a nominal load capacity …

The Heli CPCD 18 is a diesel forklift manufactured by Heli from 2000 to 2008. It weighs 2.89 tons and has a nominal load capacity of 1.8 tons at the center of gravity, which is located at 500mm.

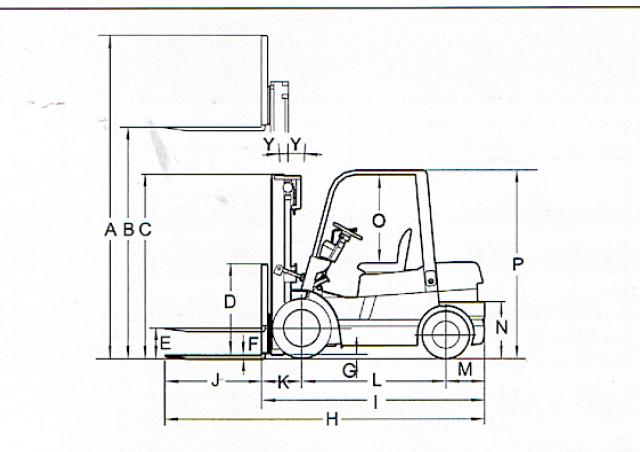

Heli CPCD 18 Dimensions and Size

Technical specs - CPCD 18 Heli

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.8 t
Centre of gravity
500 mm
Standard tyres
SE 2x/2
Transmission type
W
Weight
2.89 t
Model series
h2000
Engine manuf.
Isuzu
Engine type
C-240PKJ
Engine power
35 kW

More technical details, like: total width, construction height, turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: total width, construction height, turning radius, lifting height, travel speed with / without load, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
