Hangcha CPCD100-XW96G
- Nominal load at COG:
- 10 t
- Centre of gravity:
- 600 mm
- Standard tyres:
- 9.00-20
- Weight:
- 13.8 t

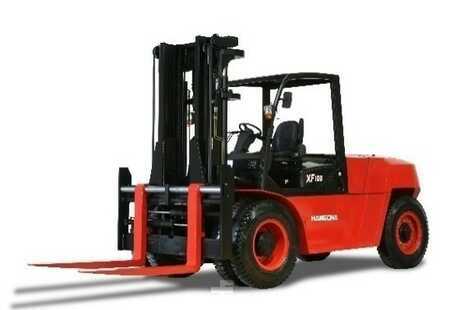

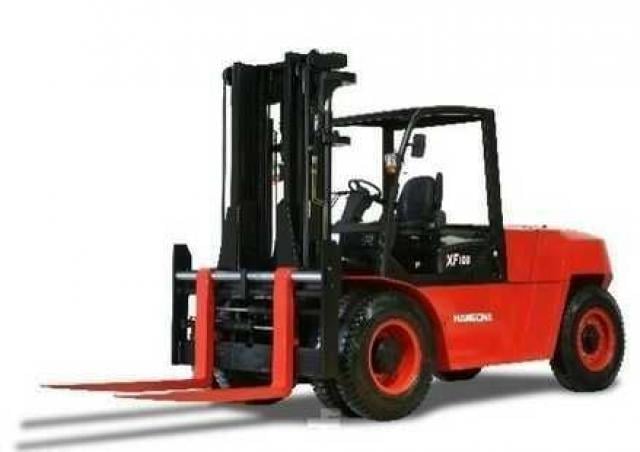

Hangcha CPCD100-XW96G diesel forklift specs & dimensions (2020 - 2025)
Technical specs - CPCD100-XW96G Hangcha
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 10 t
- Centre of gravity
- 600 mm
- Standard tyres
- 9.00-20
- Weight
- 13.8 t
- Total width
- 2165 mm
- Construction height
- 2580 mm
- Turning radius
- 3.94 m
- Lifting height
- 3 m
- Travel speed with / without load
- 28.5 km/h
- Hoisting with / without load
- 0.317 m/s
- Lowering with load
- 0.455 m/s
- max. climbing ability
- 20 %
- Model series
- XF
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L4
- Engine power
- 85 kW
- Displacement
- 3.6 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 98x120 mm
- Emission level
- V
More technical details, like: transmission type, dimension lxwxh, max. torque are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
