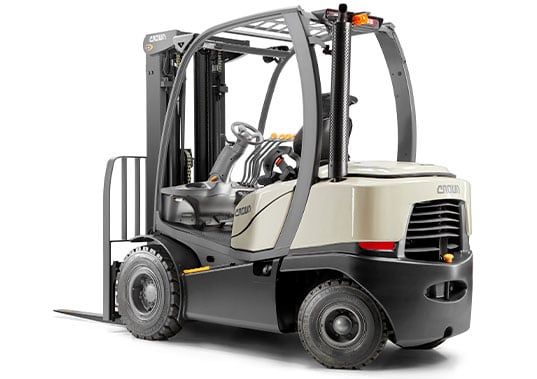

C5 1055-65 Crown diesel forklift specs & dimensions (2022 - 2026)

The Crown C5 1055-65 is a diesel forklift manufactured by Crown since 2022. It has a weight of 5.05 tons and a nominal load at the…

The Crown C5 1055-65 is a diesel forklift manufactured by Crown since 2022. It has a weight of 5.05 tons and a nominal load at the center of gravity of 2.95 tons. The lifting height reaches up to 3.2 meters, with a center of gravity at 610 mm. It has a maximum climbing ability of 33.7 percent. The hoisting speed with load is 0 m/s, and the lowering speed with load is 0.47 m/s. The total width of the forklift is 1295 mm, and it can travel at a speed of 17 km/h with or without load. The turning radius is 2.53 meters, and the construction height is 2210 mm.

Diesel Forklifts Crown C5 1055-65

Technical specs - C5 1055-65 Crown

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.95 t
Centre of gravity
610 mm
Standard tyres
Resilient 2x/2
Transmission type
HY
Weight
5.05 t
Total width
1295 mm
Construction height
2210 mm
Turning radius
2.53 m
Lifting height
3.2 m
Travel speed with / without load
17.9/17.9 km/h
Hoisting with / without load
0.59/0.60 m/s
Lowering with load
0.47 m/s
max. climbing ability
33.7 %
Model series
C5
Engine manuf.
Kohler
Engine type
N.A.
Engine power
46 kW
Displacement
2.5 l
Revolutions at max torque
1500 rpm
Max. torque
280 Nm
No. of cylinders
4

More technical details, like: dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
