DP70N1 Caterpillar diesel forklift specs & dimensions (2021 - 2026)

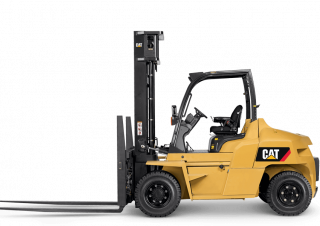

The Caterpillar DP70N1 is a diesel forklift machine manufactured since 2021. It has a weight of 9.42 tons and a nominal load capac…

The Caterpillar DP70N1 is a diesel forklift machine manufactured since 2021. It has a weight of 9.42 tons and a nominal load capacity of 7 tons at the center of gravity. The lifting height reaches up to 3.1 meters, with a center of gravity at 600 millimeters. It has a maximum climbing ability of 35 percent. The hoisting speed is 0 meters per second with or without a load, while the lowering speed with a load is 0.5 meters per second. The total width of the forklift is 2170 millimeters, and it can travel at a speed of 25 kilometers per hour with or without a load. The turning radius is 3.31 meters, and the construction height is 2610 millimeters.

Diesel Forklifts Caterpillar DP70N1

Technical specs - DP70N1 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
7 t
Centre of gravity
600 mm
Standard tyres
Front: 8.25-15-12PR / Rear: 8.25-15-12PR
Weight
9.42 t
Total width
2170 mm
Construction height
2610 mm
Turning radius
3.31 m
Lifting height
3.1 m
Travel speed with / without load
25/29 km/h
Hoisting with / without load
0.47/0.49 m/s
Lowering with load
0.5 m/s
max. climbing ability
35 %
Model series
DP
Engine manuf.
Perkins
Engine type
854F
Engine power
75 kW
Displacement
3.4 l
Revolutions at max torque
1600 rpm
Max. torque
290 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
