DP45NB Caterpillar diesel forklift specs & dimensions (2019 - 2026)

Name: Caterpillar DP45NB Diesel Forklifts
Brand: Caterpillar

The Caterpillar DP45NB is a diesel forklift manufactured since 2019. It has a weight of 6.33 tons and a nominal load capacity of 4…

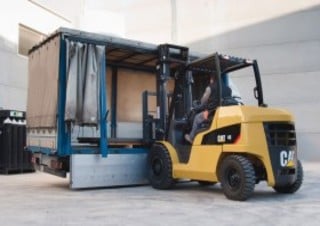

The Caterpillar DP45NB is a diesel forklift manufactured since 2019. It has a weight of 6.33 tons and a nominal load capacity of 4.5 tons at the center of gravity. The forklift can lift loads up to a height of 3.3 meters, with a center of gravity at 500mm. It has a maximum climbing ability of 27 percent. The hoisting speed is 0.55m/s with a load and 0.5m/s when lowering with a load. The total width of the forklift is 1965mm. It can travel at a speed of 19.5km/h with or without a load. The turning radius is 2.73 meters and the construction height is 2320mm.

DP45NB

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DP45NB Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4.5 t

Centre of gravity: 500 mm

Standard tyres: Front: 300-15-18PR / Rear: 7.00-12-14PR

Weight: 6.33 t

Total width: 1965 mm

Construction height: 2320 mm

Turning radius: 2.73 m

Lifting height: 3.3 m

Travel speed with / without load: 19.5/20.5 km/h

Hoisting with / without load: 0.55/0.61 m/s

Lowering with load: 0.5 m/s

max. climbing ability: 27 %

Model series: DP

Engine manuf.: Perkins

Engine type: 854F

Engine power: 55 kW

Displacement: 3.4 l

Revolutions at max torque: 2200 rpm

Max. torque: 260/1000 Nm

No. of cylinders: 4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
