FD 70 Artison diesel forklift specs & dimensions (2007 - 2017)

The Artison FD 70 is a diesel forklift manufactured by Artison from 2007 to 2017. It has a weight of 9.3 tons and a nominal load a…

The Artison FD 70 is a diesel forklift manufactured by Artison from 2007 to 2017. It has a weight of 9.3 tons and a nominal load at the center of gravity of 7 tons. The forklift can lift loads up to a height of 4 meters and has a center of gravity at 600 mm. It has a maximum climbing ability of 32 percent and a total width of 2010 mm. The turning radius of the forklift is 3.38 meters and its construction height is 2740 mm.

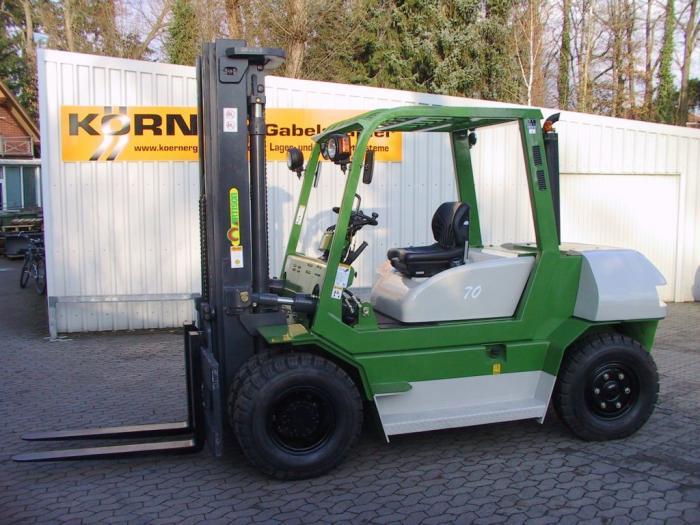

Diesel Forklifts Artison FD 70
Artison FD 70 Dimensions and Size
Diesel Forklifts Artison FD 70
Artison FD 70 Dimensions and Size

Technical specs - FD 70 Artison

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
7 t
Centre of gravity
600 mm
Standard tyres
L4x/2
Transmission type
W
Weight
9.3 t
Total width
2010 mm
Construction height
2740 mm
Turning radius
3.38 m
Lifting height
4 m
Travel speed with / without load
26/30 km/h
Hoisting with / without load
0.46/0.55 m/s
Lowering with load
0.6/0.3 m/s
max. climbing ability
32 %
Model series
FD
Engine manuf.
Perkins
Engine type
1106C
Engine power
129.5 kW

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
