.jpg)
Artison FD 20
- Nominal load at COG:
- 2 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- L2x/2
- Transmission type:
- W

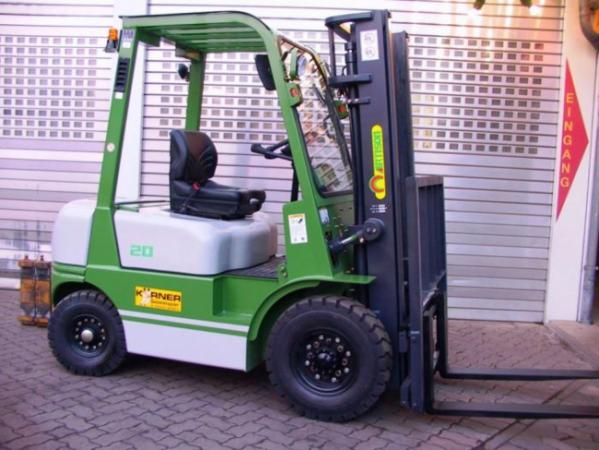

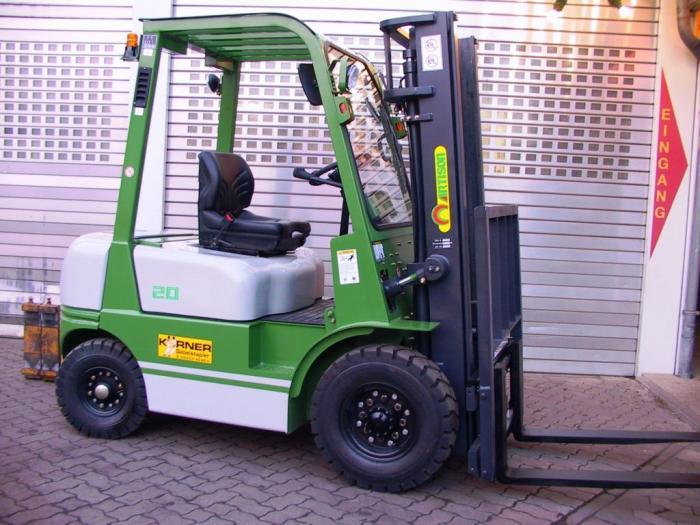

FD 20 Artison diesel forklift specs & dimensions (2008 - 2017)
.jpg)
Technical specs - FD 20 Artison
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2 t
- Centre of gravity
- 500 mm
- Standard tyres
- L2x/2
- Transmission type
- W
- Weight
- 3.58 t
- Total width
- 1158 mm
- Construction height
- 2150 mm
- Turning radius
- 2.17 m
- Lifting height
- 4 m
- Travel speed with / without load
- 17/18 km/h
- Hoisting with / without load
- 0.55/0.65 m/s
- Lowering with load
- 0.47/0.44 m/s
- max. climbing ability
- 25 %
- Model series
- FD
- Engine manuf.
- Yanmar
- Engine type
- 4TNE92
- Engine power
- 34 kW
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
