100 SE Valla crane - load chart, specs & dimensions (2023 - 2026)

max. carrying capacity: 10t – at reach: 2m – Carrying capacity: 1.1t – at max. reach: 7.5m – max. standard boom: 9.5m – Min. stand…

max. carrying capacity: 10t – at reach: 2m – Carrying capacity: 1.1t – at max. reach: 7.5m – max. standard boom: 9.5m – Min. standard boom: 2m

See load chart, specs, capacity, size and other technical data for Valla 100 SE crane manufactured between 2023 - 2026. See information, like: max. carrying capacity: 10t – at reach: 2m – Carrying capacity: 1.1t – at max. reach: 7.5m – max. standard boom: 9.5m – Min. standard boom: 2m and more.

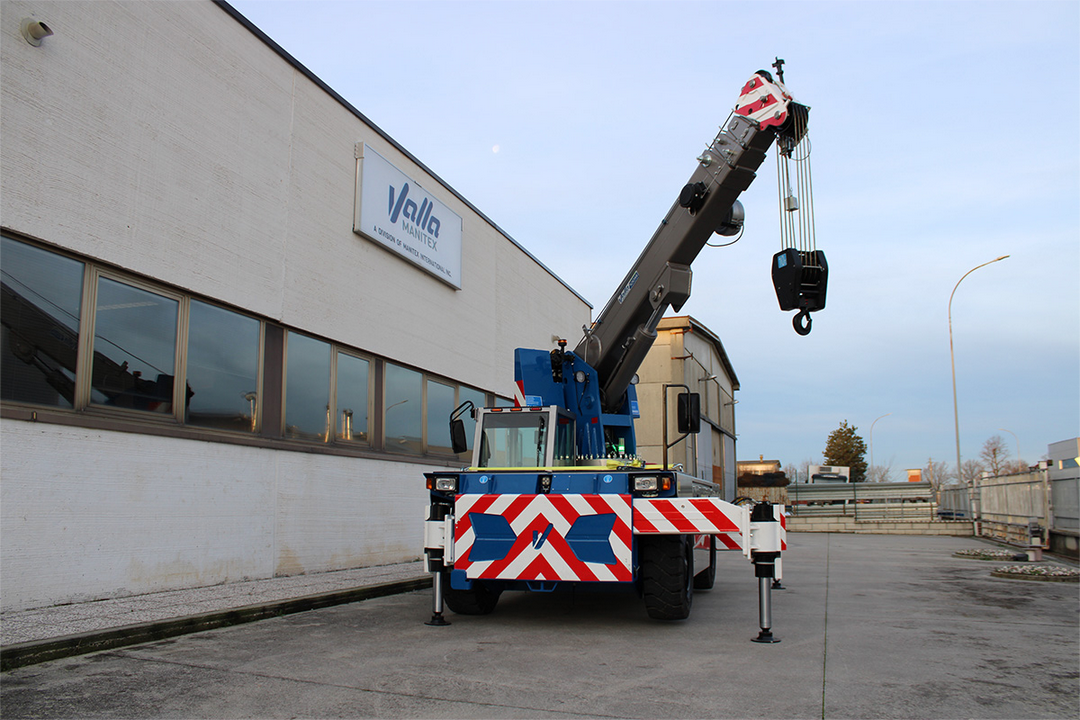

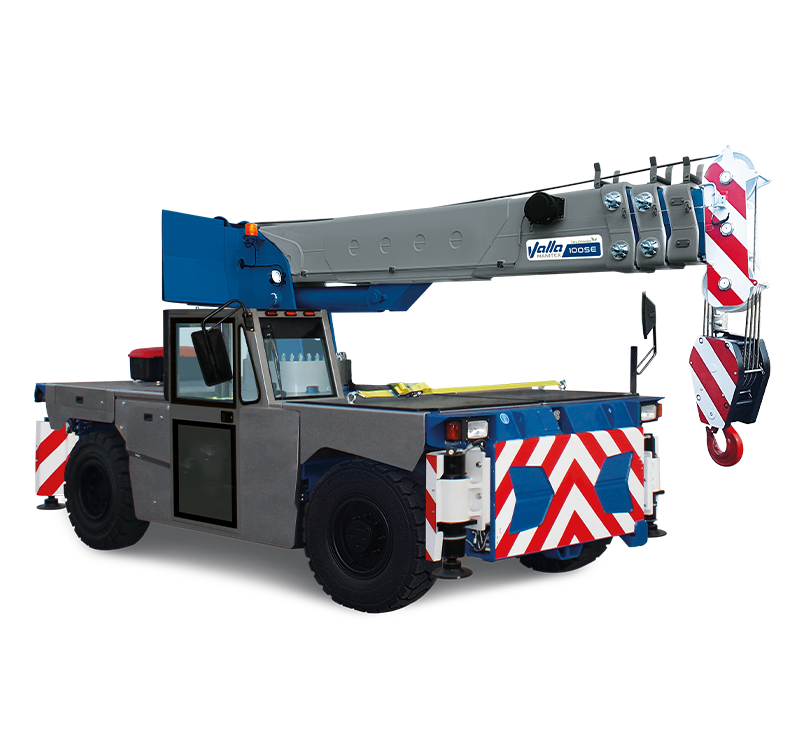

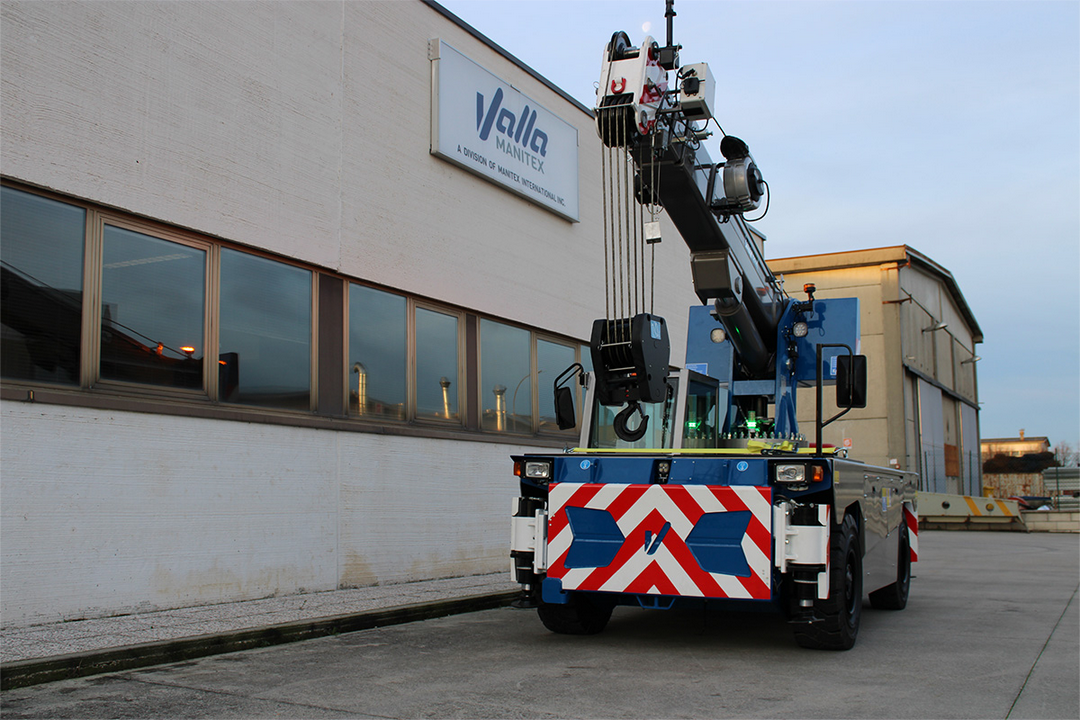

Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE
Industrial mobile cranes Valla 100 SE

Technical specs - 100 SE Valla

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
10 t
at reach
2 m
Carrying capacity
1.1 t
at max. reach
7.5 m
max. standard boom
9.5 m
Min. standard boom
2 m
max. hook height
7.5 m
Power source
Electric
Engine power
16 kW
Standard tyres
F: S.E. 355/65-R15
Weight
11.45 t
Number of axles
2
Model series
SE

More technical details, like: load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: load torque, travel speed, tipping load, outriggers spacing length, outriggers spacing width, engine manuf., engine type, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
No
MOT approval
No
Add. hook
No
