PIXEF 215 Til crane - load chart, specs & dimensions (2018 - 2026)

max. carrying capacity: 10t – at reach: 3m – Carrying capacity: 1.2t – at max. reach: 12m – max. standard boom: 13m – Min. standar…

max. carrying capacity: 10t – at reach: 3m – Carrying capacity: 1.2t – at max. reach: 12m – max. standard boom: 13m – Min. standard boom: 6m

See load chart, specs, capacity, size and other technical data for Til PIXEF 215 crane manufactured between 2018 - 2026. See information, like: max. carrying capacity: 10t – at reach: 3m – Carrying capacity: 1.2t – at max. reach: 12m – max. standard boom: 13m – Min. standard boom: 6m and more.

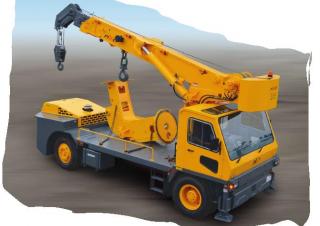

Industrial mobile cranes Til PIXEF 215

Technical specs - PIXEF 215 Til

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
10 t
at reach
3 m
Carrying capacity
1.2 t
at max. reach
12 m
max. standard boom
13 m
Min. standard boom
6 m
max. hook height
14 m
Power source
Diesel
Engine power
74.3 kW
Travel speed
35 km/h
Standard tyres
11.00x20-16PR
Outriggers spacing width
3.654 m
Model series
PIXEF
Engine manuf.
Til
Engine type
N/A
Revolutions at max torque
1700 rpm
Max. torque
390 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: load torque, tipping load, outriggers spacing length, weight, number of axles, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
Yes
MOT approval
No
Add. hook
Yes
