YB4411 Grove crane - load chart, specs & dimensions (1999 - 2018)

max. carrying capacity: 9.5t – at reach: 3.6m – at max. reach: 10m – max. standard boom: 10m – Min. standard boom: 4.2m – Load Tor…

max. carrying capacity: 9.5t – at reach: 3.6m – at max. reach: 10m – max. standard boom: 10m – Min. standard boom: 4.2m – Load Torque: 87kNm

See load chart, specs, capacity, size and other technical data for Grove YB4411 crane manufactured between 1999 - 2018. See information, like: max. carrying capacity: 9.5t – at reach: 3.6m – at max. reach: 10m – max. standard boom: 10m – Min. standard boom: 4.2m – Load Torque: 87kNm and more.

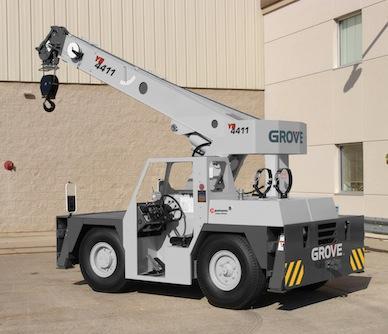

Industrial mobile cranes Grove YB4411
Industrial mobile cranes Grove YB4411
Industrial mobile cranes Grove YB4411
Industrial mobile cranes Grove YB4411
Industrial mobile cranes Grove YB4411
Industrial mobile cranes Grove YB4411

Technical specs - YB4411 Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
9.5 t
at reach
3.6 m
at max. reach
10 m
max. standard boom
10 m
Min. standard boom
4.2 m
Load Torque
87 kNm
Engine power
74.5 kW
Standard tyres
10.00 x 15
Outriggers spacing length
0.18 m
Outriggers spacing width
0.2 m
Model series
YB
Engine manuf.
Cummins
Engine type
QSB 3.3 L
Revolutions at max torque
2600 rpm
No. of cylinders
4
Emission level
Tier IV

More technical details, like: carrying capacity, max. hook height, power source, travel speed, tipping load, weight, number of axles, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

including hook block/s and freely moveable with the nominal load

Special equipment

2nd winch
No
max. luffing jib
No
Passenger cabin
No
MOT approval
No
Add. hook
No

Download datasheets (PDF)

Grove YB4411 overview

Transport

Swing

Ball bearing swing circle with 360° continuous rotation. Hydraulic driven worm gear and pinion. Maximum speed: 2.05 rpm


Work

Load indicator (LSI)

A simple, effective, and easy to use load indicating system used in conjunction with the anti-two block system to assist the operator in efficient operation of the unit within the limits of the load chart. The display panel displays the hook load and warns the operator when a preset load capacity is exceeded. The warning is by a flashing light on the display panel. In conjunction with the load display panel (receiver), there is a wireless transmitter and load sensing pin attached to the boom head that transmits the hook load to the display panel. (wireless system)


Rated Capacity Limiter (RCL)

Similar to the Load Indicator, but stops the telescope out and boom lift down function when a load limit is exceeded. Uses a similar display panel with the addition of displaying boom angle and boom length read outs on the panel. (wireless system)


Load Moment Indicator (LMI)

Digital display of boom angle, boom length, boom radius, capacity, and allows for operator input to set the limits based on load chart. Displays color coded light bar and audible alarm with function cutout if load exceeds entered parameters. (hardwired system)


Hydraulic

Operators control station

Frame mounted, open air style control station with cab shell. Includes all crane functions, driving controls, and overhead safety glass. Other standard equipment includes a durable weather resistant seat with seat belt, hourmeter, sight level bubble, and fire extinguisher. The dash panel includes engine oil pressure gauge, engine water temperature gauge, fuel gauge, transmission low oil and high temperature warning lights, low battery warning light, and brake system low pressure warning light. The LSI (load indicator) receiver is mounted to the top of the dash and provides warning for A2B and exceeded load capacity.
