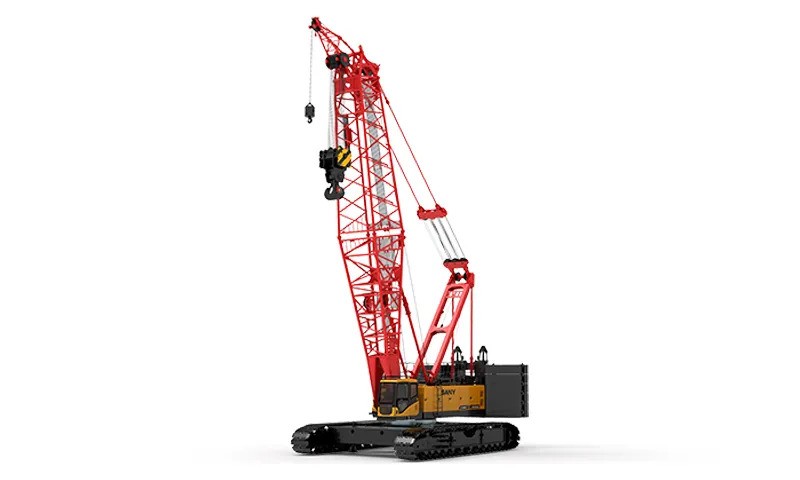

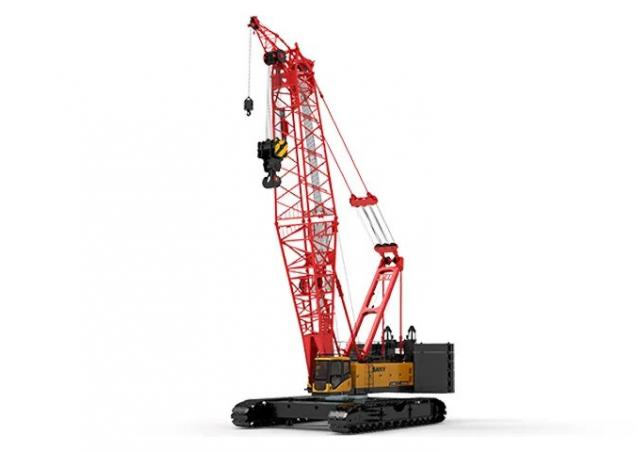

Sany SCC1800A crane - load chart, specs & dimensions (2023 - 2025)

max. carrying capacity: 180t – at reach: 5m – Carrying capacity: 11.7t – at max. reach: 44m – max. standard boom: 82m – Min. stand…

max. carrying capacity: 180t – at reach: 5m – Carrying capacity: 11.7t – at max. reach: 44m – max. standard boom: 82m – Min. standard boom: 16m

See load chart, specs, capacity, size and other technical data for Sany SCC1800A crane manufactured between 2023 - 2025. See information, like: max. carrying capacity: 180t – at reach: 5m – Carrying capacity: 11.7t – at max. reach: 44m – max. standard boom: 82m – Min. standard boom: 16m and more.

Technical specs - SCC1800A Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
180 t
at reach
5 m
Carrying capacity
11.7 t
at max. reach
44 m
max. standard boom
82 m
Min. standard boom
16 m
Max. luffing jib
31 m
Engine power
242 kW
Travel speed
1 km/h
Model series
SCC
Engine manuf.
Cummins China
Engine type
QSL8.9-C325
Displacement
8.9 l
Revolutions at max torque
2100 rpm
Max. torque
1385 Nm
No. of cylinders
6
Emission level
Tier III

More technical details, like: max. hook height, load torque, soil pressure, dimension lxwxh, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
Add. ballast
No
Basic boom
No
Tip extension
No

Download datasheets (PDF)
