Grove GMK4100L-2
- max. carrying capacity:
- 100 t
- at reach:
- 3 m
- Carrying capacity:
- 1 t
- at max. reach:
- 55 m

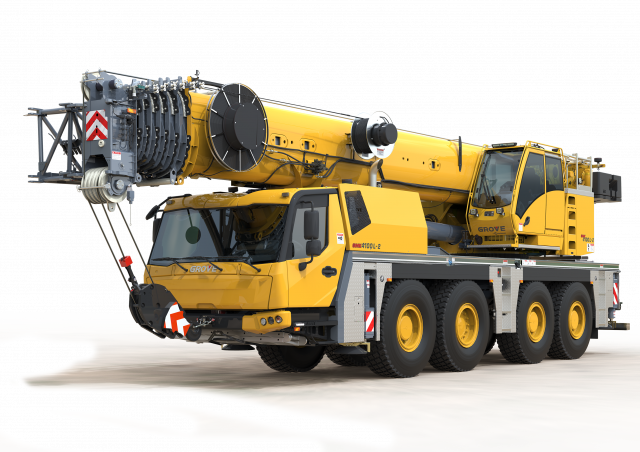

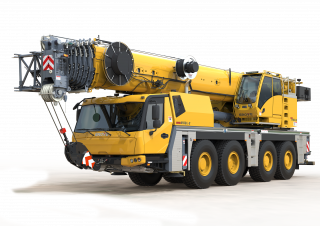

Grove GMK4100L-2 crane - load chart, specs & dimensions (2021 - 2025)
Technical specs - GMK4100L-2 Grove
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 100 t
- at reach
- 3 m
- Carrying capacity
- 1 t
- at max. reach
- 55 m
- max. standard boom
- 60 m
- Min. standard boom
- 11.3 m
- Max. luffing jib
- 25.6 m
- max. hook height
- 89 m
- Load Torque
- 306 kNm
- Undercarriage engine
- 320 kW
- Travel speed
- 85 km/h
- Number of axles
- 4
- Wheels/Drive/Steering
- 8/6/8
- axle load
- 12 t
- Standard tyres
- 385/95 R25 (14.00 R25)
- Outriggers spacing length
- 8.66 m
- Outriggers spacing width
- 7.2 m
- Model series
- GMK
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM470LA
- Engine power
- 320 kW
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 2100 Nm
- No. of cylinders
- 6
- Emission level
- Euromot 5 / EPA / CARB Tier 4 final
More technical details, like: superstructure engine, tipping load, dimension lxwxh, displacement, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- max. fold hydr.
-
No
- Erection tip
-
No
- Foucault current brake
-
No
- Add. ballast
-
No
Download datasheets (PDF)
