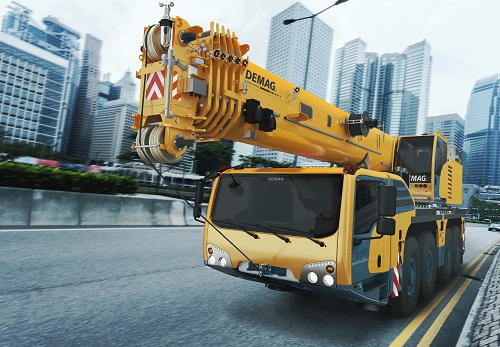

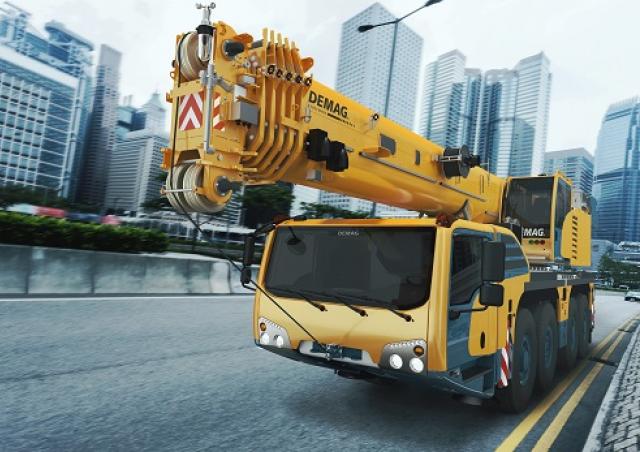

Demag AC 100-4L
- max. carrying capacity:
- 100 t
- at reach:
- 2 m
- Carrying capacity:
- 1.1 t
- at max. reach:
- 54 m
Demag AC 100-4L crane - load chart, specs (2014 - 2021)
Technical specs - AC 100-4L Demag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- max. carrying capacity
- 100 t
- at reach
- 2 m
- Carrying capacity
- 1.1 t
- at max. reach
- 54 m
- max. standard boom
- 59.4 m
- Min. standard boom
- 12 m
- Max. luffing jib
- 27 m
- max. hook height
- 60 m
- Undercarriage engine
- 340 kW
- Superstructure engine
- 129 kW
- Travel speed
- 85 km/h
- Number of axles
- 4
- Wheels/Drive/Steering
- 8/4/8
- axle load
- 14.5 t
- Standard tyres
- 14.00R25
- Outriggers spacing length
- 8.076 m
- Outriggers spacing width
- 7.2 m
- Model series
- 4
- Engine manuf.
- MTU
- Engine type
- N/A
- Engine power
- 340 kW
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 2200 Nm
- Emission level
- Euromot 4/Tier 4F
More technical details, like: load torque, tipping load, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, weight are available in the full technical specs.
Including hook block
Special equipment
- 2nd winch
-
No
- max. luffing jib
-
No
- max. fold hydr.
-
No
- Erection tip
-
No
- Foucault current brake
-
No
- Add. ballast
-
Yes
Download datasheets (PDF)
