CR452 Terex CR452 Specifications & Technical Data (2008—2023)

Weight: 17.461t – Transport length: 5.69m – Transport width: 3.05m – Transport height: 2.642m – Standard width: 3.15m – Max. width: 8.5m

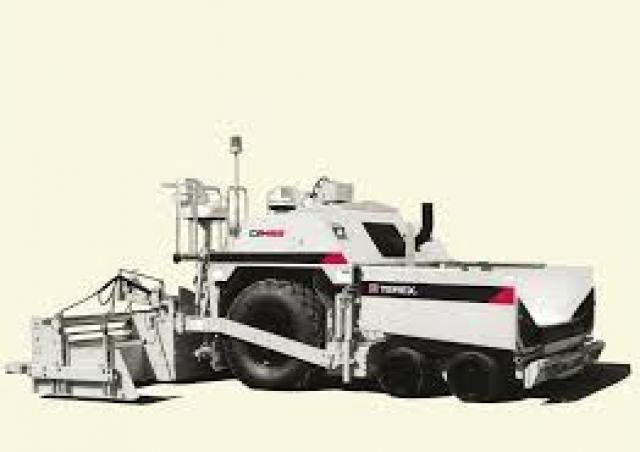

Wheeled Asphalt Pavers Terex CR452

Technical specs - CR452 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.461 t
Transport length
5.69 m
Transport width
3.05 m
Transport height
2.642 m
Standard width
3.15 m
Max. width
8.5 m
Drive
DE
Wheels
23.1x26 16PLY
Bunker capacity
6.2 m³
Operating speed
88 m/min
Type of screed
V
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
164 kW
Revolutions at max torque
2200 rpm

More technical details, like: hydr. extension from, hydr. extension up to, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with operator cabin roof, std. beam and screed plate heating Prices and weights refer to the std. width (most demanded/sold width), excl. hydraulic or manual extention

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Vibration
No
High compaction
No
Spray unit
No
Tamper
No

Download datasheets (PDF)

Terex CR452 FAQ

When was the Terex CR452 manufactured?

The Terex CR452 was manufactured from 2008 to 2023.

How much does the Terex CR452 weigh?

The Terex CR452 weighs 17.46 tons.

What are the transport dimensions of the Terex CR452 wheeled asphalt paver?

The Terex CR452 has transport dimensions of 5.69 meters in length, 3.05 meters in width, and 2.64 meters in height.

What is the operating speed of the Terex CR452 wheeled asphalt paver?

The Terex CR452 has an operating speed of 88 meters per minute.

What are the undercarriage specifications of the Terex CR452 wheeled asphalt paver?

The Terex CR452 has a diesel electric drive system and uses 23.1x26 16PLY wheels.

What are the paving performance specifications of the Terex CR452 wheeled asphalt paver?

The Terex CR452 features a vibratory screed, a standard paving width of 3.15 meters, a maximum paving width of 8.5 meters, and an operating speed of 88 meters per minute.

How much is a Terex CR452 Wheeled Asphalt Paver (2008u20132023) worth?

The residual value of the Terex CR452 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
