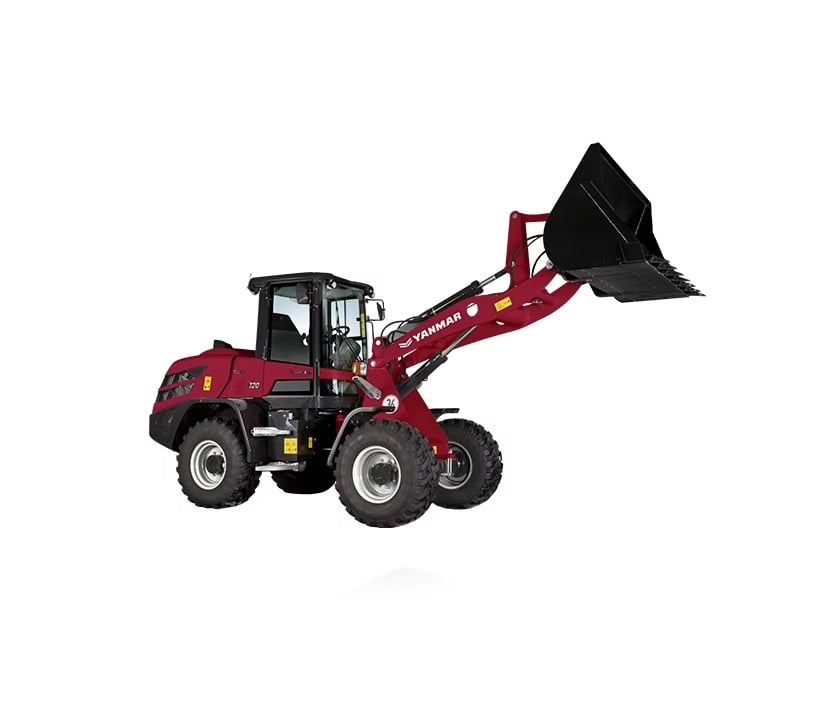

V120 Yanmar V120 Specifications & Technical Data (2024—2026)

Weight: 7t – Standard tyres: 405/70 R 20 – Bucket width: 2.1m – Bucket capacity: 1.2m³ – Bucket capacity min.: 1.2m³ – Bucket capacity max.: 1.8m³

V120

Years of manufacture: 2024—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - V120 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7 t

Standard tyres: 405/70 R 20

Bucket width: 2.1 m

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 1.8 m³

Steering mode: KL

Transport length: 5.54 m

Transport width: 2.1 m

Transport height: 2.79 m

Travel speed: 20 km/h

Max. discharge height: 2.68 m

Turning radius outside: 4.68 m

Lifting force: 55 kN

Model series: V

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 74.4 kW

Displacement: 3.6 l

Revolutions at max torque: 2000 rpm

Max. torque: 410/1600 Nm

No. of cylinders: 4

Emission level: EU V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar V120 FAQ

When was the Yanmar V120 manufactured?

The Yanmar V120 was first produced in 2024.

How much does the Yanmar V120 wheel loader weigh?

The Yanmar V120 wheel loader weighs 7 tons.

What are the transport dimensions of the Yanmar V120 wheel loader?

The Yanmar V120 has a transport length of 5.54 meters, a transport width of 2.1 meters, and a transport height of 2.79 meters.

What is the travel speed of the Yanmar V120 wheel loader?

The Yanmar V120 wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Yanmar V120 wheel loader?

The Yanmar V120 wheel loader is equipped with standard tyres sized 405/70 R 20.

What are the maneuverability specifications of the Yanmar V120 wheel loader?

The Yanmar V120 wheel loader has an outside turning radius of 4.68 meters and features articulated-frame steering.

What is the lifting force of the Yanmar V120 wheel loader?

The Yanmar V120 wheel loader has a lifting force of 55 kN.

What is the maximum discharge height of the Yanmar V120?

The Yanmar V120 has a maximum discharge height of 2.68 meters.

What are the specifications of the bucket on the Yanmar V120 wheel loader?

The Yanmar V120 wheel loader has a bucket capacity ranging from 1.2 to 1.8 cubic meters, with a bucket width of 2.1 meters.
