AR 95 e weycor AR 95 e Specifications & Technical Data (2016—2019)

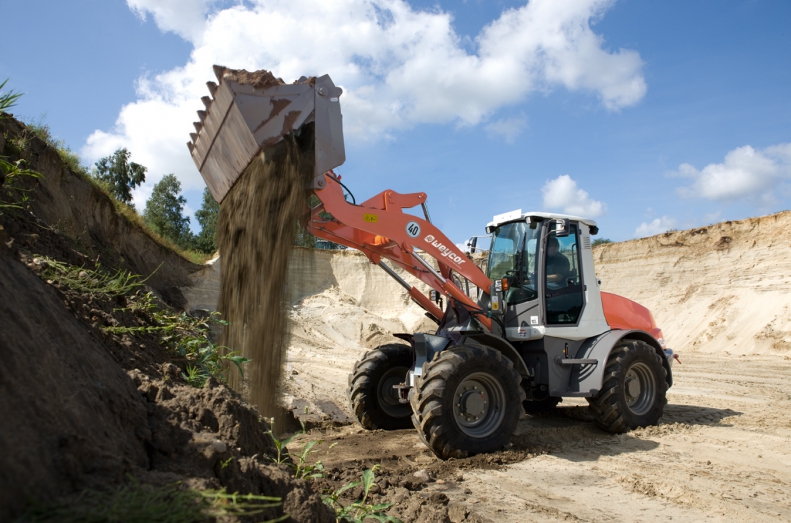

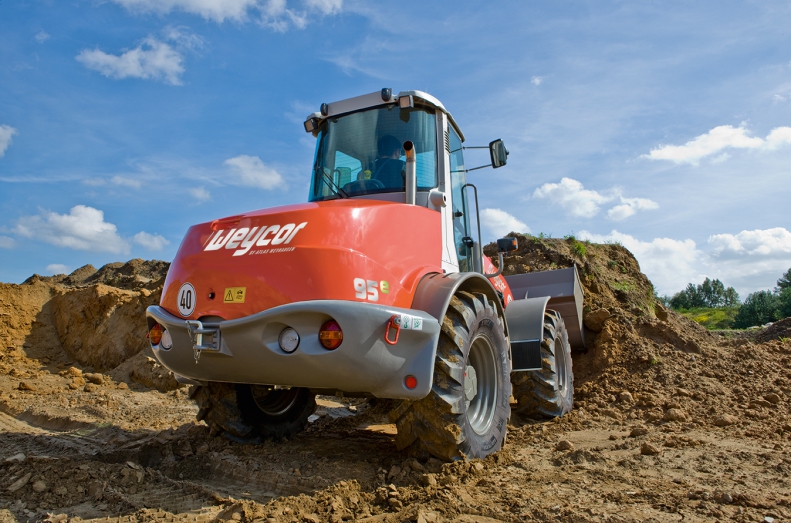

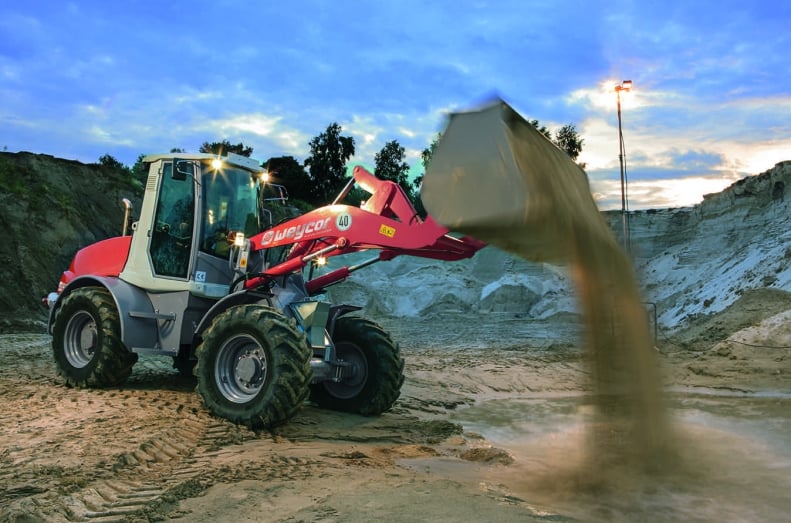

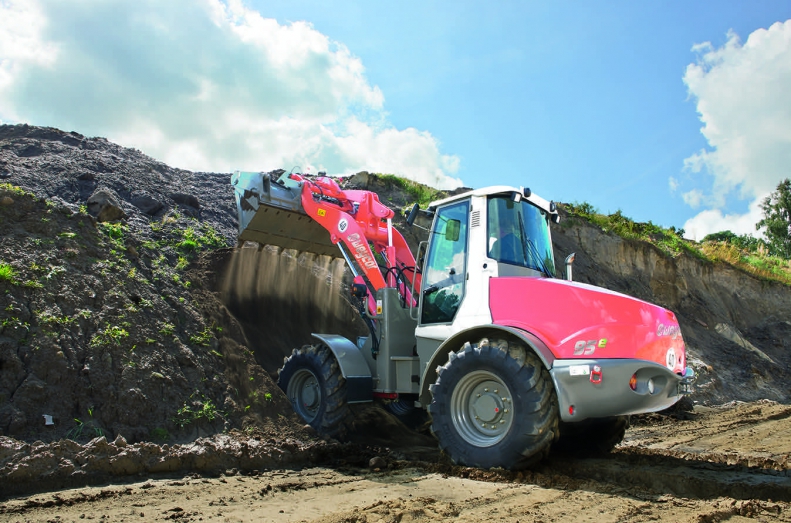

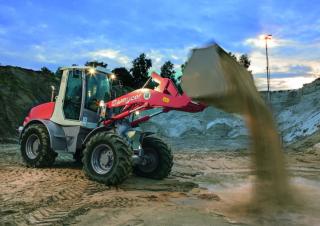

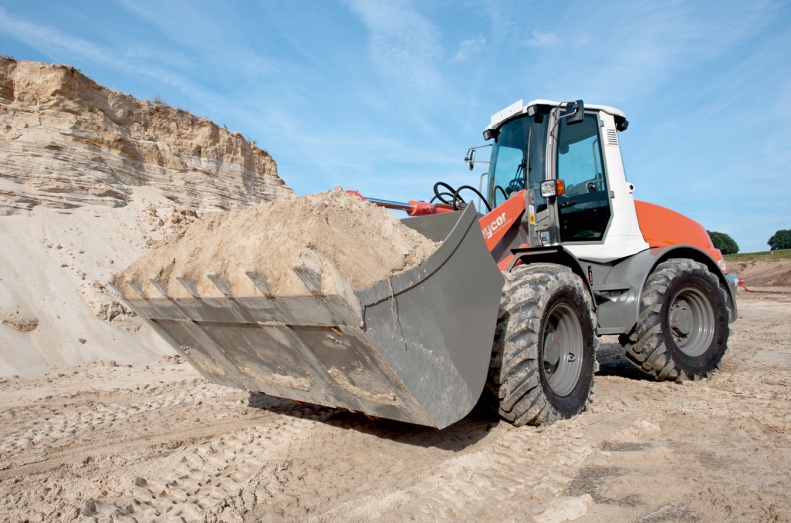

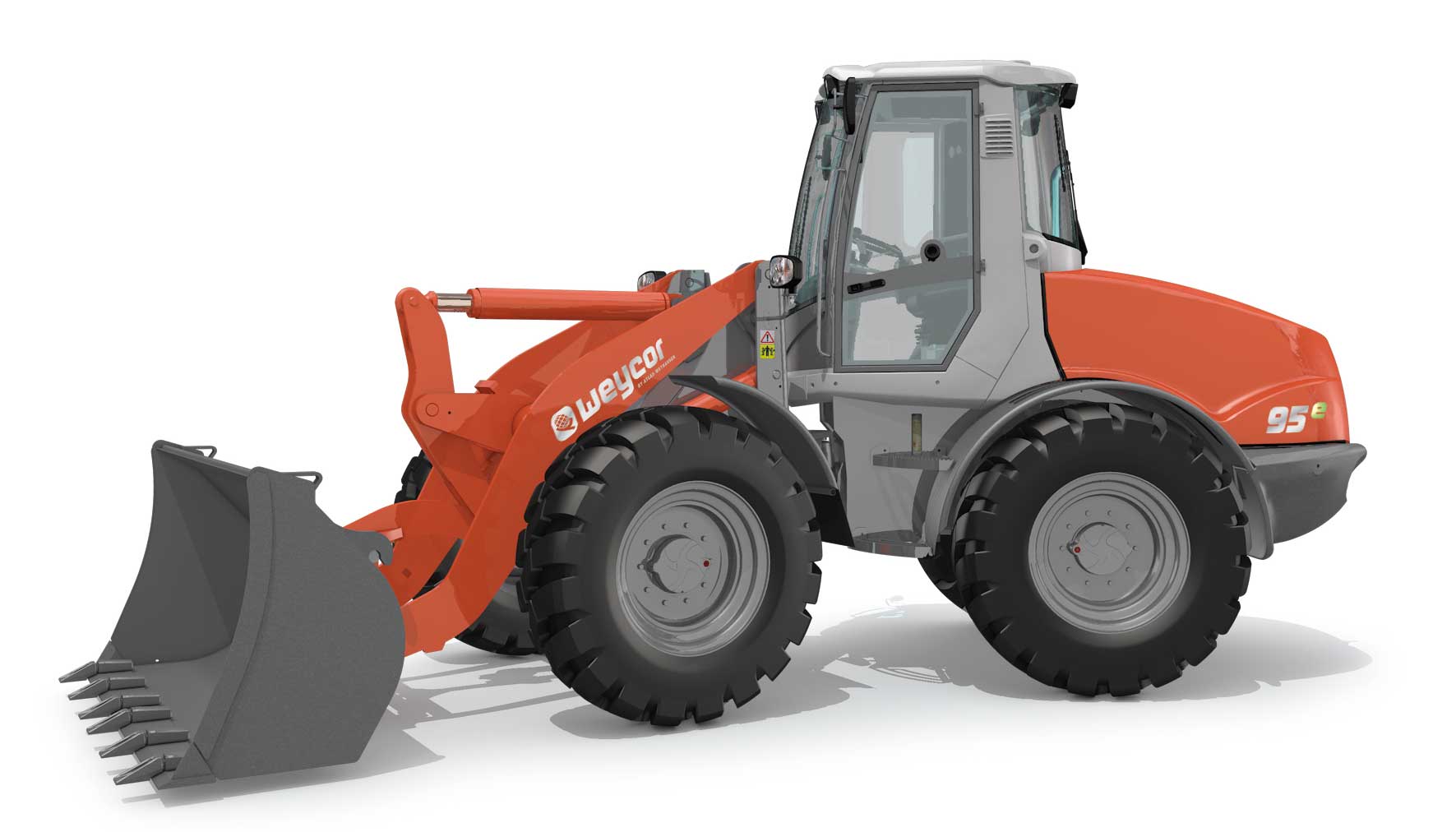

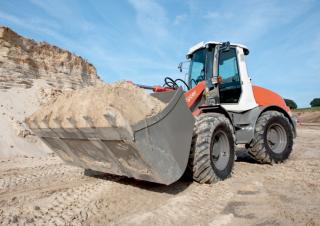

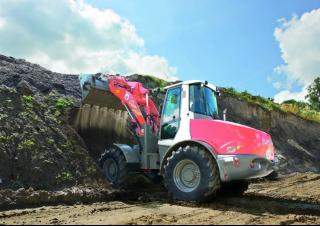

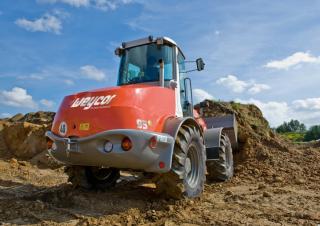

The Weycor AR 95 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 7.9 tons and a transport length …

The Weycor AR 95 e is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 7.9 tons and a transport length of 6.23 meters. The bucket capacity is 1.4 cubic meters, with a bucket width of 2.3 meters. The maximum discharge height is 2.815 meters. It has a travel speed of 20 km/h and a transport width of 2.18 meters. The transport height is 2.932 meters. The lifting force is 82 kN. The turning radius outside is 4.61 meters. The machine is equipped with quick hitch hydr. and quick hitch mech. special equipment. The maximum bucket capacity is 2 cubic meters, while the minimum is 1.4 cubic meters.

Visit weycor live at

AR 95 e

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 95 e weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.9 t

Standard tyres: 15.5-25 EM 20

Bucket width: 2.3 m

Bucket capacity: 1.4 m³

Bucket capacity min.: 1.4 m³

Bucket capacity max.: 2 m³

Steering mode: KL

Transport length: 6.23 m

Transport width: 2.18 m

Transport height: 2.932 m

Travel speed: 20 km/h

Max. discharge height: 2.815 m

Turning radius outside: 4.61 m

Lifting force: 82 kN

Model series: AR

Engine manuf.: Deutz

Engine type: TCD3.6 L04

Engine power: 85 kW

Displacement: 3.62 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

AR 95 e weycor Specification for Europe (DE)

weycor AR 95 e FAQ

When was the weycor AR 95 e manufactured?

The weycor AR 95 e was manufactured from 2016 to 2019.

How much does the weycor AR 95 e weigh?

The weycor AR 95 e weighs 7.9 tons.

What are the transport dimensions of the weycor AR 95 e wheel loader?

The weycor AR 95 e has a transport length of 6.23 meters, a transport width of 2.18 meters, and a transport height of 2.93 meters.

What is the travel speed of the weycor AR 95 e wheel loader?

The weycor AR 95 e wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 95 e wheel loader?

The weycor AR 95 e wheel loader is equipped with standard tyres sized 15.5-25 EM 20.

What are the maneuverability specifications of the weycor AR 95 e wheel loader?

The weycor AR 95 e wheel loader has an articulated-frame steering mode and an outside turning radius of 4.61 meters.

What is the lifting force rating of the weycor AR 95 e wheel loader?

The weycor AR 95 e wheel loader has a lifting force of 82 kN.

What is the maximum discharge height of the weycor AR 95 e wheel loader?

The weycor AR 95 e wheel loader has a maximum discharge height of 2.82 meters.

What are the specifications of the bucket on the weycor AR 95 e wheel loader?

The weycor AR 95 e wheel loader has a bucket with a capacity ranging from 1.4 to 2 cubic meters and a width of 2.3 meters.

How much is a weycor AR 95 e Wheel loader (2016u20132019) worth?

The residual value of the weycor AR 95 e depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
