AR 80 e weycor AR 80 e Specifications & Technical Data (2016—2017)

The Weycor AR 80 e is a wheel loader manufactured by Weycor from 2016 to 2017. It has a weight of 6.22 tons and a transport length…

The Weycor AR 80 e is a wheel loader manufactured by Weycor from 2016 to 2017. It has a weight of 6.22 tons and a transport length of 5.48 meters. The bucket capacity is 1 cubic meter with a bucket width of 2.15 meters. The maximum discharge height is 2.61 meters. It has a travel speed of 20 km/h and a transport width of 1.85 meters. The transport height is 2.69 meters. The lifting force is 60.4 kN. The turning radius outside is 4.23 meters. It is equipped with quick hitch hydr. and quick hitch mech. special equipment.

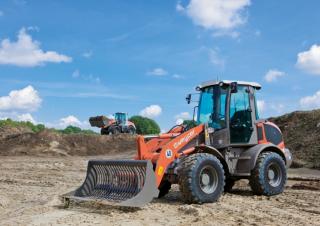

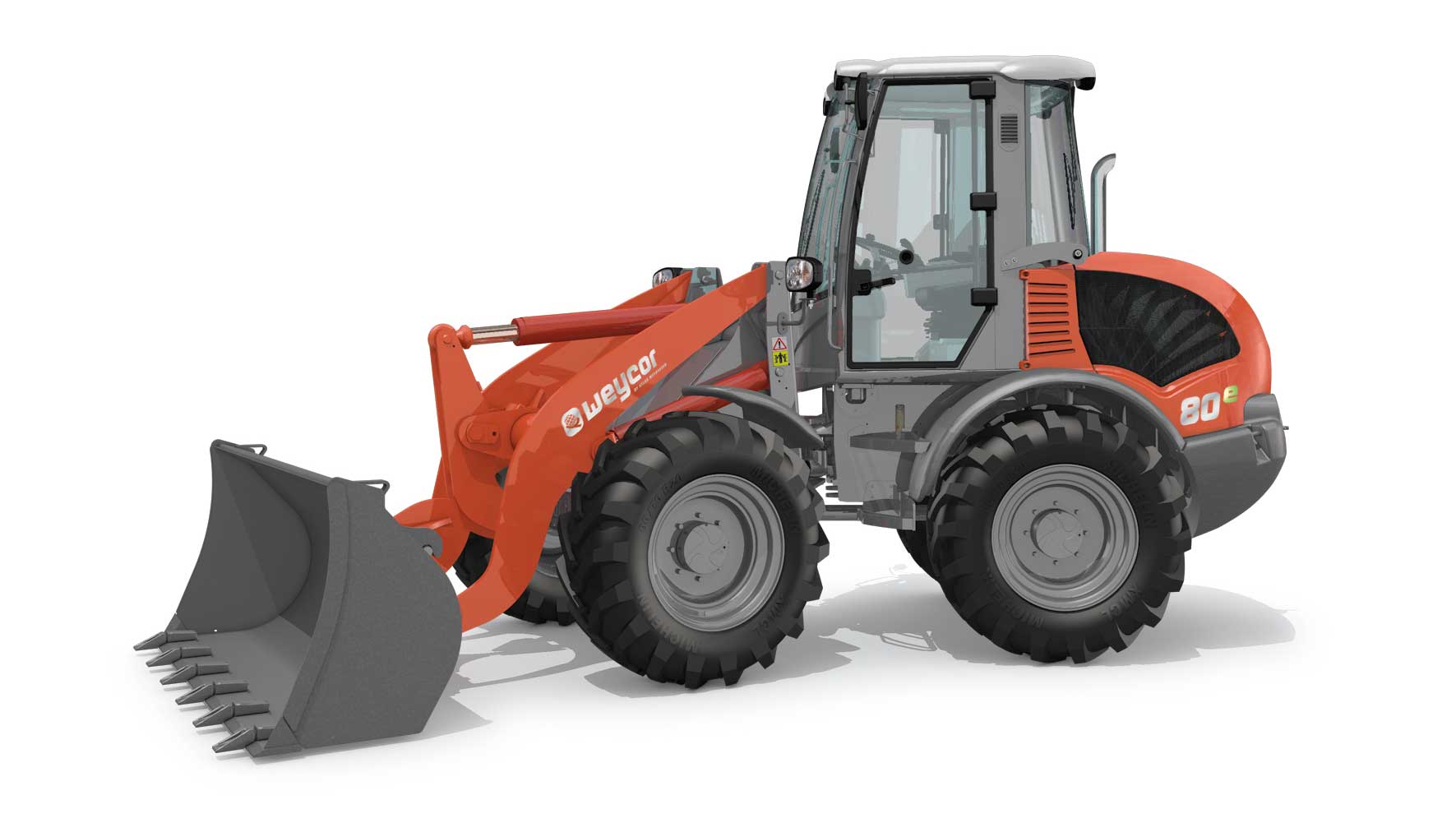

Wheel Loaders weycor AR 80 e

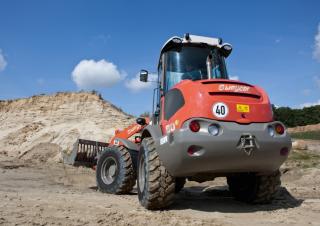

Wheel Loaders weycor AR 80 e

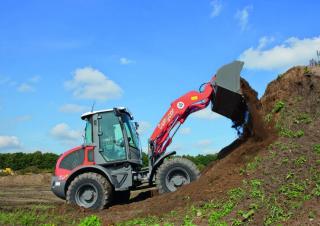

Wheel Loaders weycor AR 80 e

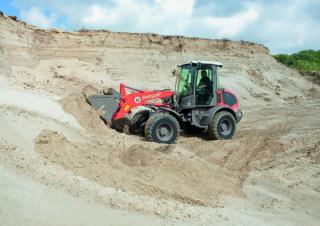

Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e
Wheel Loaders weycor AR 80 e

Visit weycor live at

Technical specs - AR 80 e weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.22 t
Standard tyres
405/70 R 20
Bucket width
2.15 m
Bucket capacity
1 m³
Bucket capacity min.
1 m³
Steering mode
KL
Transport length
5.48 m
Transport width
1.85 m
Transport height
2.69 m
Travel speed
20 km/h
Max. discharge height
2.61 m
Turning radius outside
4.23 m
Lifting force
60.4 kN
Model series
AR
Engine manuf.
Deutz
Engine type
TCD3.6 L04
Engine power
70 kW
Displacement
3.62 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

weycor AR 80 e FAQ

When was the weycor AR 80 e manufactured?

The weycor AR 80 e was manufactured from 2016 to 2017.

How much does the weycor AR 80 e wheel loader weigh?

The weycor AR 80 e wheel loader weighs 6.22 tons.

What are the transport dimensions of the weycor AR 80 e wheel loader?

The transport dimensions of the weycor AR 80 e are 5.48 meters in length, 1.85 meters in width, and 2.69 meters in height.

What is the travel speed of the weycor AR 80 e wheel loader?

The weycor AR 80 e has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 80 e wheel loader?

The weycor AR 80 e wheel loader is equipped with standard tyres sized 405/70 R 20.

What are the maneuverability specifications of the weycor AR 80 e wheel loader?

The weycor AR 80 e has an articulated-frame steering mode and an outside turning radius of 4.23 meters.

What power ratings are available for the weycor AR 80 e wheel loader?

The source data does not provide power ratings for the weycor AR 80 e wheel loader.

What is the maximum discharge height of the weycor AR 80 e wheel loader?

The weycor AR 80 e wheel loader has a maximum discharge height of 2.61 meters.

What are the specifications of the bucket on the weycor AR 80 e wheel loader?

The bucket of the weycor AR 80 e has a capacity of 1 cubic meter, a minimum capacity of 1 cubic meter, and a width of 2.15 meters.

How much is a weycor AR 80 e Wheel loader (2016u20132017) worth?

The residual value of the weycor AR 80 e depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
