AR 35 Super weycor AR 35 Super Specifications & Technical Data (2016—2019)

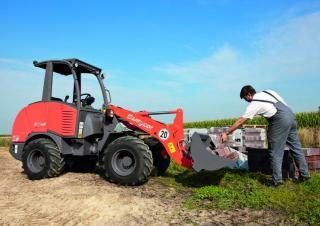

The Weycor AR 35 Super is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 2.88 tons and a transport le…

The Weycor AR 35 Super is a wheel loader manufactured by Weycor from 2016 to 2019. It has a weight of 2.88 tons and a transport length of 4.24 meters. The bucket capacity is 0.4 cubic meters with a bucket width of 1.55 meters. The maximum discharge height is 2.3 meters and it has a travel speed of 20 km/h. The transport width is 1.35 meters and the transport height is 2.27 meters. It has a lifting force of 21 kN and a turning radius outside of 2.87 meters. The special equipment includes quick hitch hydr. and quick hitch mech.

Visit weycor live at

AR 35 Super

Years of manufacture: 2016—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - AR 35 Super weycor

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.88 t

Standard tyres: 10.0/75-15.3 MPT

Bucket width: 1.55 m

Bucket capacity: 0.4 m³

Bucket capacity min.: 0.4 m³

Steering mode: KL

Transport length: 4.24 m

Transport width: 1.35 m

Transport height: 2.27 m

Travel speed: 20 km/h

Max. discharge height: 2.3 m

Turning radius outside: 2.87 m

Lifting force: 21 kN

Model series: AR

Engine manuf.: Perkins

Engine type: 403D-15T

Engine power: 30 kW

Displacement: 1.5 l

Revolutions at max torque: 2800 rpm

More technical details, like: bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

AR 35 Super weycor Specification for Europe (DE)

weycor AR 35 Super FAQ

When was the weycor AR 35 Super manufactured?

The weycor AR 35 Super was manufactured from 2016 to 2019.

How much does the weycor AR 35 Super weigh?

The weycor AR 35 Super weighs 2.88 tons.

What are the transport dimensions of the weycor AR 35 Super wheel loader?

The weycor AR 35 Super has a transport length of 4.24 meters, a transport width of 1.35 meters, and a transport height of 2.27 meters.

What is the travel speed of the weycor AR 35 Super wheel loader?

The weycor AR 35 Super has a travel speed of 20 km/h.

What are the undercarriage specifications of the weycor AR 35 Super wheel loader?

The weycor AR 35 Super wheel loader is equipped with standard tyres sized 10.0/75-15.3 MPT.

What are the maneuverability specifications of the weycor AR 35 Super wheel loader?

The weycor AR 35 Super has an articulated-frame steering system and an outside turning radius of 2.87 meters.

What is the lifting force of the weycor AR 35 Super wheel loader?

The weycor AR 35 Super wheel loader has a lifting force of 21 kN.

What is the maximum discharge height of the weycor AR 35 Super wheel loader?

The weycor AR 35 Super has a maximum discharge height of 2.3 meters.

What are the specifications of the bucket on the weycor AR 35 Super wheel loader?

The bucket of the weycor AR 35 Super has a capacity of 0.4 cubic meters, a minimum capacity of 0.4 cubic meters, and a width of 1.55 meters.

How much is a weycor AR 35 Super Wheel loader (2016u20132019) worth?

The residual value of the weycor AR 35 Super depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
