5080 T Weidemann 5080 T Specifications & Technical Data (2014—2026)

The Weidemann 5080 T is a wheel loader manufactured since 2014. It has a weight of 7.2 tons and a transport length of 6.396 meters…

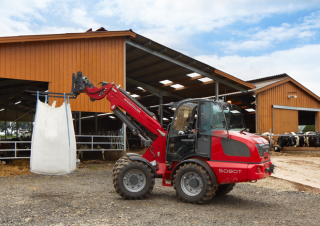

The Weidemann 5080 T is a wheel loader manufactured since 2014. It has a weight of 7.2 tons and a transport length of 6.396 meters. The maximum discharge height is 4.086 meters and it can travel at a speed of 20 km/h. The transport width is 1.99 meters and the transport height is 2.72 meters. Special equipment includes a quick hitch hydraulic system and telescopic capabilities.

5080 T

Years of manufacture: 2014—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 5080 T Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.2 t

Standard tyres: 550/45-22.5 AS ET 0

Steering mode: KL

Transport length: 6.4 m

Transport width: 1.99 m

Transport height: 2.72 m

Travel speed: 20 km/h

Max. discharge height: 4.09 m

Turning radius outside: 4.473 m

Model series: T

Engine manuf.: Perkins

Engine type: 904J-E36TA

Engine power: 100 kW

Displacement: 3.4 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: IV

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 5080 T FAQ

When was the Weidemann 5080 T manufactured?

The Weidemann 5080 T was first produced in 2014.

How much does the Weidemann 5080 T wheel loader weigh?

The Weidemann 5080 T wheel loader weighs 7.2 tons.

What are the transport dimensions of the Weidemann 5080 T wheel loader?

The Weidemann 5080 T has a transport length of 6.4 meters, a transport width of 1.99 meters, and a transport height of 2.72 meters.

What is the travel speed of the Weidemann 5080 T wheel loader?

The Weidemann 5080 T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 5080 T?

The Weidemann 5080 T is equipped with standard tyres sized 550/45-22.5 AS ET 0.

What is the outside turning radius and steering mode of the Weidemann 5080 T wheel loader?

The Weidemann 5080 T has an articulated-frame steering system and an outside turning radius of 4.473 meters.

What is the maximum discharge height of the Weidemann 5080 T wheel loader?

The Weidemann 5080 T has a maximum discharge height of 4.09 meters.

How much is a Weidemann 5080 T Wheel loader (2014u20132025) worth?

The residual value of the Weidemann 5080 T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
