4080 T Basic Line Weidemann 4080 T Basic Line Specifications & Technical Data (2019—2024)

The Weidemann 4080 T Basic Line is a wheel loader manufactured since 2019. It has a weight of 6.1 tons and a transport length of 5…

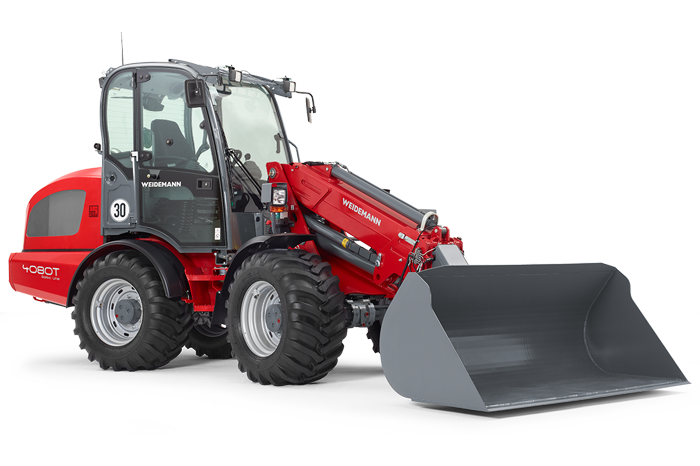

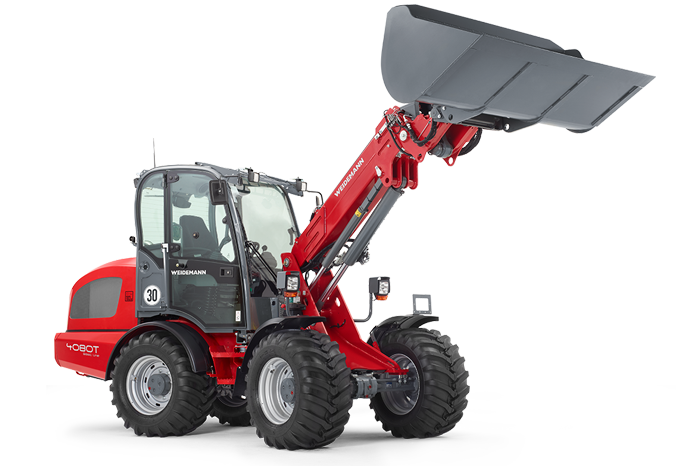

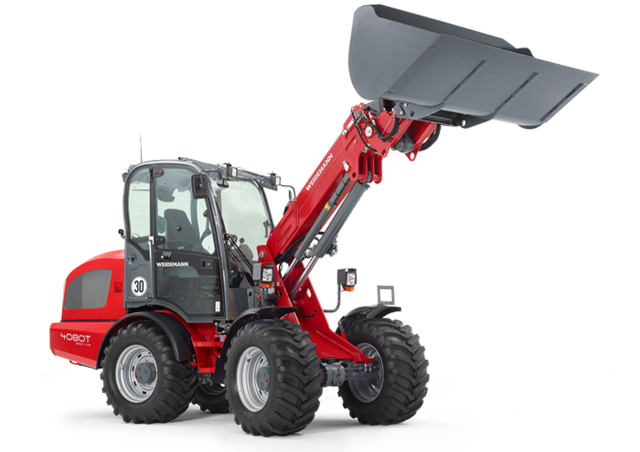

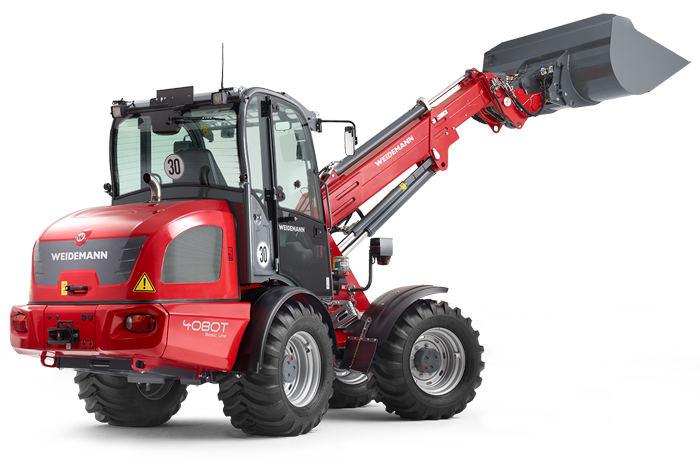

The Weidemann 4080 T Basic Line is a wheel loader manufactured since 2019. It has a weight of 6.1 tons and a transport length of 5.929 meters. The maximum discharge height is 4.226 meters, and it can travel at a speed of 20 km/h. The transport width is 1.742 meters, and the transport height is 2.66 meters. The turning radius outside is 4.275 meters. Special equipment includes a diesel particulate filter, quick hitch hydraulic, and telescopic feature.

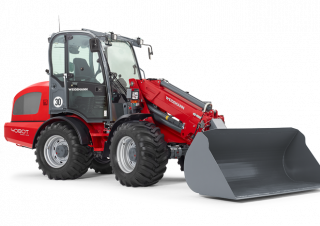

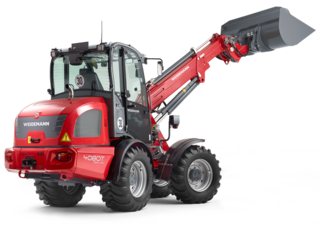

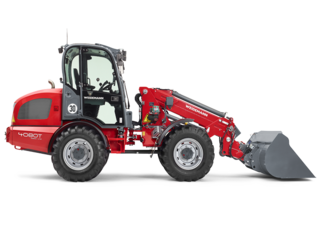

Wheel Loaders Weidemann 4080 T Basic Line

4080 T Basic Line

Years of manufacture: 2019—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4080 T Basic Line Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.1 t

Standard tyres: 12.5-20 EM ET0

Steering mode: KL

Transport length: 5.929 m

Transport width: 1.742 m

Transport height: 2.66 m

Travel speed: 20 km/h

Max. discharge height: 4.226 m

Turning radius outside: 4.275 m

Model series: T

Engine manuf.: Deutz

Engine type: TD2.9 L4 S5

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 260/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 4080 T Basic Line FAQ

When was the Weidemann 4080 T Basic Line manufactured?

The Weidemann 4080 T Basic Line was manufactured from 2019 to 2024.

How much does the Weidemann 4080 T Basic Line weigh?

The Weidemann 4080 T Basic Line weighs 6.1 tons.

What are the transport dimensions of the Weidemann 4080 T Basic Line wheel loader?

The Weidemann 4080 T Basic Line has a transport length of 5.93 meters, a transport width of 1.74 meters, and a transport height of 2.66 meters.

What is the travel speed of the Weidemann 4080 T Basic Line?

The Weidemann 4080 T Basic Line has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 4080 T Basic Line?

The Weidemann 4080 T Basic Line is equipped with standard tyres sized 12.5-20 EM ET0.

What are the maneuverability specifications of the Weidemann 4080 T Basic Line wheel loader?

The Weidemann 4080 T Basic Line has an outside turning radius of 4.275 meters and uses articulated-frame steering for maneuverability.

What is the maximum discharge height of the Weidemann 4080 T Basic Line wheel loader?

The Weidemann 4080 T Basic Line has a maximum discharge height of 4.23 meters.
