4080 LP T Weidemann 4080 LP T Specifications & Technical Data (2019—2024)

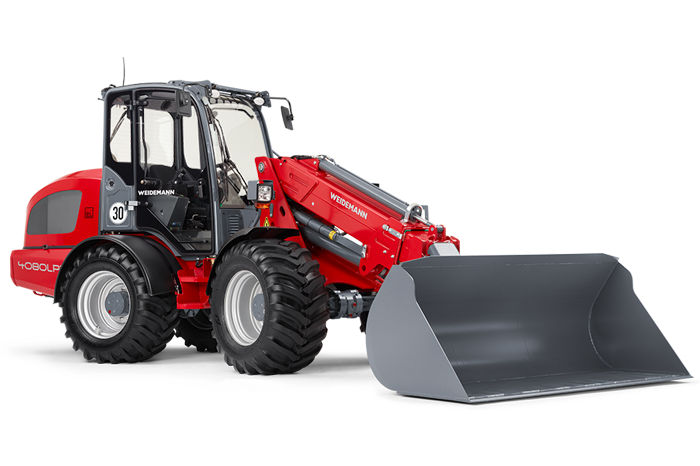

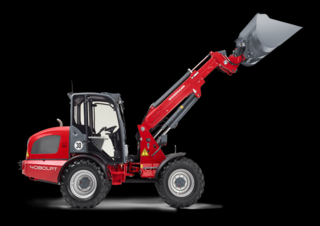

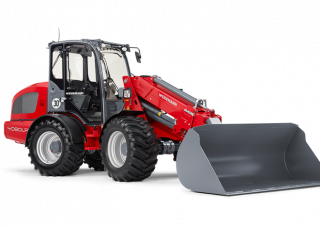

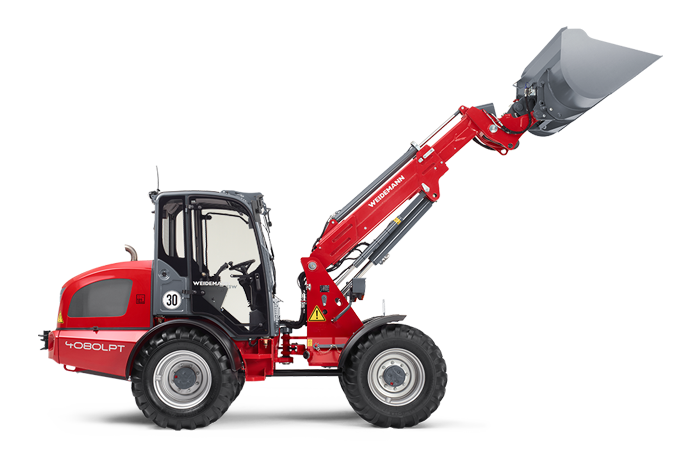

The Weidemann 4080 LP T is a wheel loader manufactured since 2019. It has a weight of 6 tons and a transport length of 5.929 meter…

The Weidemann 4080 LP T is a wheel loader manufactured since 2019. It has a weight of 6 tons and a transport length of 5.929 meters. The maximum discharge height is 4.23 meters and it can travel at a speed of 20 km/h. The transport width is 1.74 meters and the transport height is 2.495 meters. Special equipment includes a diesel particulate filter, quick hitch hydraulic, and telescopic feature.

4080 LP T

Years of manufacture: 2019—2024

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4080 LP T Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6 t

Standard tyres: 12.5-20 MPT ET 0

Steering mode: KL

Transport length: 5.93 m

Transport width: 1.74 m

Transport height: 2.5 m

Travel speed: 20 km/h

Max. discharge height: 4.23 m

Turning radius outside: 4.275 m

Model series: T

Engine manuf.: Deutz

Engine type: TD2.9 L4 S5

Engine power: 55.4 kW

Displacement: 2.9 l

Revolutions at max torque: 2300 rpm

Max. torque: 260/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, bucket capacity, bucket capacity min., bucket capacity max., lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 4080 LP T FAQ

When was the Weidemann 4080 LP T manufactured?

The Weidemann 4080 LP T was manufactured from 2019 to 2024.

How much does the Weidemann 4080 LP T weigh?

The Weidemann 4080 LP T weighs 6 tons.

What are the transport dimensions of the Weidemann 4080 LP T wheel loader?

The Weidemann 4080 LP T has a transport length of 5.93 meters, a transport width of 1.74 meters, and a transport height of 2.5 meters.

What is the travel speed of the Weidemann 4080 LP T wheel loader?

The Weidemann 4080 LP T has a travel speed of 20 km/h.

What are the undercarriage specifications of the Weidemann 4080 LP T?

The Weidemann 4080 LP T is equipped with standard tyres sized 12.5-20 MPT ET 0.

What are the maneuverability specifications of the Weidemann 4080 LP T wheel loader?

The Weidemann 4080 LP T features articulated-frame steering and has an outside turning radius of 4.275 meters.

What is the maximum discharge height of the Weidemann 4080 LP T wheel loader?

The Weidemann 4080 LP T has a maximum discharge height of 4.23 meters.
