L60H Volvo L60H Specifications & Technical Data (2014—2018)

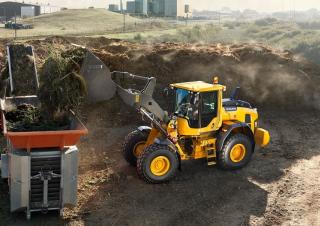

The Volvo L60H is a wheel loader manufactured by Volvo from 2016 to 2018. It has a weight of 12.1 tons and a transport length of 7…

The Volvo L60H is a wheel loader manufactured by Volvo from 2016 to 2018. It has a weight of 12.1 tons and a transport length of 7.35 meters. The bucket capacity is 2.1 cubic meters with a width of 2.5 meters. The maximum discharge height is 3.87 meters. It has a travel speed of 45 km/h and a transport width of 2.43 meters. The transport height is 3.27 meters. The lifting force is 81.9 kN and the turning radius outside is 11.57 meters. The minimum bucket capacity is 2.1 cubic meters.

Visit Volvo live at

L60H

Years of manufacture: 2014—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - L60H Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.1 t

Standard tyres: 20.5 R 25

Bucket width: 2.5 m

Bucket capacity: 2.1 m³

Bucket capacity min.: 2.1 m³

Steering mode: KL

Transport length: 7.35 m

Transport width: 2.43 m

Transport height: 3.27 m

Travel speed: 45 km/h

Max. discharge height: 3.87 m

Turning radius outside: 11.57 m

Lifting force: 81.9 kN

Model series: L

Engine manuf.: Volvo

Engine type: D6J

Engine power: 123 kW

Displacement: 5.7 l

Revolutions at max torque: 1800 rpm

Max. torque: 820/1400 Nm

No. of cylinders: 6

Emission level: IV

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Volvo L60H FAQ

When was the Volvo L60H manufactured?

The Volvo L60H was manufactured from 2014 to 2018.

How much does the Volvo L60H wheel loader weigh?

The Volvo L60H wheel loader weighs 12.1 tons.

What are the transport dimensions of the Volvo L60H wheel loader?

The Volvo L60H wheel loader has a transport length of 7.35 meters, a transport width of 2.43 meters, and a transport height of 3.27 meters.

What is the travel speed of the Volvo L60H wheel loader?

The Volvo L60H has a travel speed of 45 km/h.

What are the undercarriage specifications of the Volvo L60H wheel loader?

The Volvo L60H wheel loader is equipped with standard tyres sized 20.5 R 25.

What are the maneuverability specifications of the Volvo L60H wheel loader?

The Volvo L60H has an articulated-frame steering mode and an outside turning radius of 11.57 meters.

What is the lifting force of the Volvo L60H wheel loader?

The Volvo L60H wheel loader has a lifting force of 81.9 kN.

What is the maximum discharge height of the Volvo L60H?

The Volvo L60H has a maximum discharge height of 3.87 meters.

What are the bucket specifications of the Volvo L60H wheel loader?

The Volvo L60H wheel loader has a bucket capacity of 2.1 cubic meters and a bucket width of 2.5 meters.

How much is a Volvo L60H Wheel loader (2014u20132018) worth?

The residual value of the Volvo L60H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
