    Lectura specs Construction machinery Wheel Loaders Wheel Loaders Caterpillar Caterpillar 924K specifications

    Caterpillar 924K Specifications & Technical Data (2013-2016)

    10,00/10 Rate this machine now!

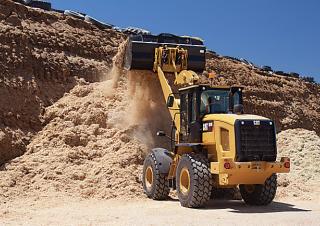

    Manufactured by Caterpillar, this is the 924K wheel loader. Find and download detailed specs and data sheets for this machine here... Read more

    Manufactured by Caterpillar, this is the 924K wheel loader. Find and download detailed specs and data sheets for this machine here.

    The Caterpillar 924K is a 12.8t machine with Caterpillar engine which powers this model with up to 106kW or 142 horse power. The Caterpillar 924K can be grouped in the biggest machine segment in the wheel loaders category. The measurements of the 924K are 2.54m x 7.451m x 3.34m. The Size of standard tyres for this Caterpillar 924K is 17.5 R 25. The Wheel Loader 924K Caterpillar is designed to travel at a top speed of 39km/h. The bucket capacity of 924K is 1.9m³, which is above average for this type of machine. This Caterpillar 924K is equipped with a bucket that is 2.55m wide.

    Since 2013, this model has included Aircondition. It does not include Quick hitch mech., Pivoting loader and Diesel particulate filter. Take the original Caterpillar 924K datasheet for even more detailed specifications and machine details. Specification sheet is available for a free download in English and German - providing the machine descriptions and more detailed specs about this particular model.

    This model can be acquired for a list price between €181000 and €230000. Production of the 924K stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Comparisons of the 924K Caterpillar with other wheel loader models reveal that, based on specifications and pricing, the model is similar to the Liebherr L 528 P, Hitachi ZW 150 as well as Hitachi ZW 150 PL. The most commonly viewed Caterpillar models of this type on LECTURA Specs are the 966M, 988K and 926M, and 46 other wheel loaders, which currently range from 4.1t up to 240t are also available. Want more detailed specifications? Download the latest Caterpillar 924K specs data sheet on LECTURA Specs today!

    Technical specs - 924K Caterpillar


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Weight 12.8 t
    • Standard tyres 17.5 R 25
    • Bucket width 2.55 m
    • Bucket capacity 1.9 m³
    • Bucket capacity min. 1.9 m³
    • Bucket capacity max. 5 m³
    • Steering mode KL
    • Transport length 7.451 m
    • Transport width 2.54 m
    • Transport height 3.34 m
    • Travel speed 39 km/h
    • Turning radius outside 5.924 m
    • Engine manuf. Caterpillar
    • Engine type C7.1 Acert
    • Engine power 105 kW
    • Displacement 7.1 l
    • Max. torque 702 Nm
    • Cylinder bore x stroke 105x135 mm
    • Emission level Tier 4 f
    • Max. discharge height ###
    • Lifting force ###
    • Dimension lxwxh ###
    • Revolutions at max torque ###
    • No. of cylinders ###

    Basic model with ROPS cabin, std. shovel and teeth

    Special equipment

    • Diesel particulate filter
    • Swing loader
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
