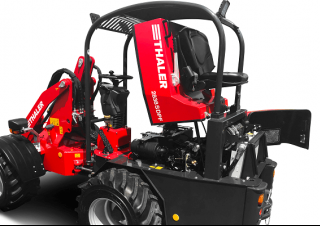

2838 T Thaler 2838 T Specifications & Technical Data (2019—2026)

The Thaler 2838 T is a wheel loader manufactured by Thaler since 2019. It has a weight of 2.8 tons and a transport length of 3.8 m…

The Thaler 2838 T is a wheel loader manufactured by Thaler since 2019. It has a weight of 2.8 tons and a transport length of 3.8 meters. The bucket capacity is 0.35 cubic meters with a width of 1.4 meters. The maximum discharge height is 3.27 meters. It has a travel speed of 20 km/h and a transport width of 1.38 meters. The transport height is 2.23 meters and the turning radius outside is 2.43 meters. The bucket capacity is a minimum of 0.35 cubic meters. It is equipped with a diesel particulate filter and has special features such as a quick hitch hydraulic system and a telescopic function.

2838 T

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2838 T Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.8 t

Standard tyres: 400/50-15

Bucket width: 1.4 m

Bucket capacity: 0.35 m³

Bucket capacity min.: 0.35 m³

Steering mode: KL

Transport length: 3.8 m

Transport width: 1.38 m

Transport height: 2.23 m

Travel speed: 20 km/h

Max. discharge height: 3.27 m

Turning radius outside: 2.43 m

Model series: 2020

Engine manuf.: Yanmar

Engine type: k.A.

Engine power: 28.2 kW

Displacement: 1.64 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 3

Emission level: V

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Thaler 2838 T FAQ

When was the Thaler 2838 T manufactured?

The Thaler 2838 T was first produced in 2019.

How much does the Thaler 2838 T wheel loader weigh?

The Thaler 2838 T wheel loader weighs 2.8 tons.

What are the transport dimensions of the Thaler 2838 T wheel loader?

The Thaler 2838 T has a transport length of 3.8 meters, a transport width of 1.38 meters, and a transport height of 2.23 meters.

What is the travel speed of the Thaler 2838 T wheel loader?

The Thaler 2838 T wheel loader has a travel speed of 20 km/h.

What are the undercarriage specifications of the Thaler 2838 T wheel loader?

The Thaler 2838 T wheel loader is equipped with standard tyres sized 400/50-15.

What are the maneuverability specifications of the Thaler 2838 T wheel loader?

The Thaler 2838 T wheel loader has an outside turning radius of 2.43 meters and uses articulated-frame steering.

What is the maximum discharge height of the Thaler 2838 T wheel loader?

The Thaler 2838 T wheel loader has a maximum discharge height of 3.27 meters.

What are the specifications of the bucket on the Thaler 2838 T wheel loader?

The Thaler 2838 T wheel loader has a bucket capacity of 0.35 cubic meters, a minimum bucket capacity of 0.35 cubic meters, and a bucket width of 1.4 meters.
