TL 210 Terex TL 210 Specifications & Technical Data (2006—2016)

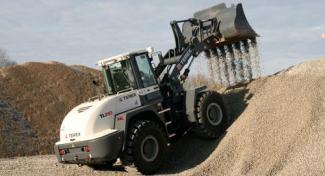

The Terex TL 210 is a wheel loader manufactured by Terex from 2006 to 2016. It has a weight of 12.5 tons and a transport length of…

The Terex TL 210 is a wheel loader manufactured by Terex from 2006 to 2016. It has a weight of 12.5 tons and a transport length of 7.09 meters. The bucket capacity is 2.1 cubic meters with a width of 2.5 meters. The maximum discharge height is 3.01 meters and it has a travel speed of 40 km/h. The transport width is 2.5 meters and the transport height is 3.26 meters. The lifting force is 123.4 kN and the turning radius outside is 5.97 meters. The machine is equipped with a quick hitch mechanism. The maximum bucket capacity is 3.5 cubic meters and the minimum bucket capacity is 2 cubic meters.

TL 210

Years of manufacture: 2006—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 210 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.5 t

Standard tyres: 20.5-25

Bucket width: 2.5 m

Bucket capacity: 2.1 m³

Bucket capacity min.: 2 m³

Bucket capacity max.: 3.5 m³

Steering mode: KL

Transport length: 7.09 m

Transport width: 2.5 m

Transport height: 3.26 m

Travel speed: 40 km/h

Max. discharge height: 3.01 m

Turning radius outside: 5.97 m

Lifting force: 123.4 kN

Model series: TL

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 119 kW

Displacement: 6.7 l

Revolutions at max torque: 2200 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Terex TL 210 FAQ

When was the Terex TL 210 manufactured?

The Terex TL 210 was manufactured from 2006 to 2016.

How much does the Terex TL 210 weigh?

The Terex TL 210 weighs 12.5 tons.

What are the transport dimensions of the Terex TL 210 wheel loader?

The Terex TL 210 has a transport length of 7.09 meters, a transport width of 2.5 meters, and a transport height of 3.26 meters.

What is the travel speed of the Terex TL 210 wheel loader?

The Terex TL 210 has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Terex TL 210 wheel loader?

The Terex TL 210 wheel loader is equipped with standard tyres sized 20.5-25.

What are the maneuverability specifications of the Terex TL 210 wheel loader?

The Terex TL 210 wheel loader has an articulated-frame steering system and an outside turning radius of 5.97 meters.

What is the lifting force of the Terex TL 210 wheel loader?

The Terex TL 210 has a lifting force of 123.4 kN.

What is the maximum discharge height of the Terex TL 210?

The Terex TL 210 has a maximum discharge height of 3.01 meters.

What are the bucket specifications of the Terex TL 210 wheel loader?

The Terex TL 210 wheel loader has a bucket capacity of 2.1 mu00b3, with a minimum capacity of 2 mu00b3 and a maximum capacity of 3.5 mu00b3, and a bucket width of 2.5 meters.
