72-31 B Terex 72-31 B Specifications & Technical Data (1978—2023)

The Terex 72-31 B is a wheel loader manufactured since 1978. It has a weight of 12.585 tons and a transport length of 6.7 meters. …

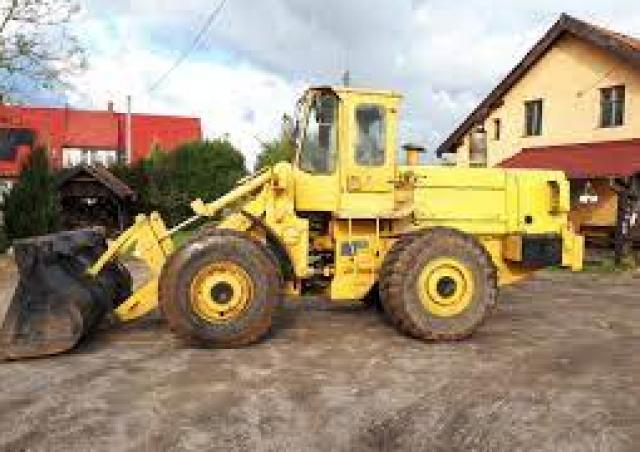

The Terex 72-31 B is a wheel loader manufactured since 1978. It has a weight of 12.585 tons and a transport length of 6.7 meters. The bucket capacity is 2.29 cubic meters, with a bucket width of 2.94 meters. The maximum discharge height is 3.7 meters, and it has a travel speed of 30.6 km/h. The transport width is 2.84 meters, and the transport height is 3.28 meters. It has a lifting force of 98 kN and a turning radius outside of 12.64 meters.

Wheel Loaders Terex 72-31 B

Technical specs - 72-31 B Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.585 t
Standard tyres
20.5x25-12PR.L2
Bucket width
2.94 m
Bucket capacity
2.29 m³
Transport length
6.7 m
Transport width
2.84 m
Transport height
3.28 m
Travel speed
30.6 km/h
Max. discharge height
3.7 m
Turning radius outside
12.64 m
Lifting force
98 kN
Engine manuf.
Detroit Diesel
Engine type
4-71T
Engine power
126 kW
Displacement
4.65 l
Revolutions at max torque
2300 rpm
Max. torque
624 Nm
No. of cylinders
4
Cylinder bore x stroke
108x127 mm

More technical details, like: bucket capacity min., bucket capacity max., steering mode, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex 72-31 B FAQ

When was the Terex 72-31 B manufactured?

The Terex 72-31 B was manufactured from 1978 until 2023.

How much does the Terex 72-31 B wheel loader weigh?

The Terex 72-31 B wheel loader weighs 12.59 tons.

What are the transport dimensions of the Terex 72-31 B wheel loader?

The Terex 72-31 B has a transport length of 6.7 meters, a transport width of 2.84 meters, and a transport height of 3.28 meters.

What is the travel speed of the Terex 72-31 B wheel loader?

The Terex 72-31 B wheel loader has a travel speed of 30.6 km/h.

What are the undercarriage specifications of the Terex 72-31 B wheel loader?

The Terex 72-31 B wheel loader is equipped with standard tyres sized 20.5x25-12PR.L2.

What is the turning radius of the Terex 72-31 B wheel loader?

The Terex 72-31 B has an outside turning radius of 12.64 meters.

What power rating information is available for the Terex 72-31 B wheel loader?

There is no power rating information available for the Terex 72-31 B wheel loader in the provided data.

What is the maximum discharge height of the Terex 72-31 B?

The Terex 72-31 B has a maximum discharge height of 3.7 meters.

What are the bucket specifications of the Terex 72-31 B wheel loader?

The Terex 72-31 B wheel loader has a bucket capacity of 2.29 cubic meters and a bucket width of 2.94 meters.

How much is a Terex 72-31 B Wheel loader (1978u20132023) worth?

The residual value of the Terex 72-31 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
