TL 120 Schaeff TL 120 Specifications & Technical Data (2017—2026)

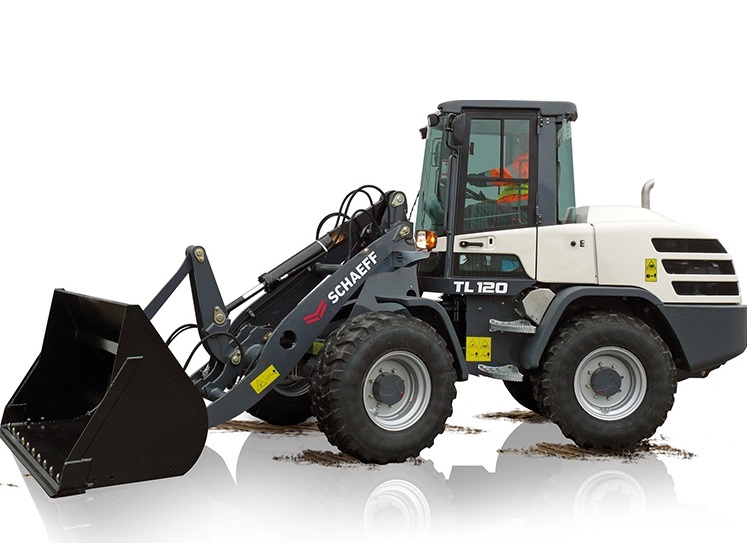

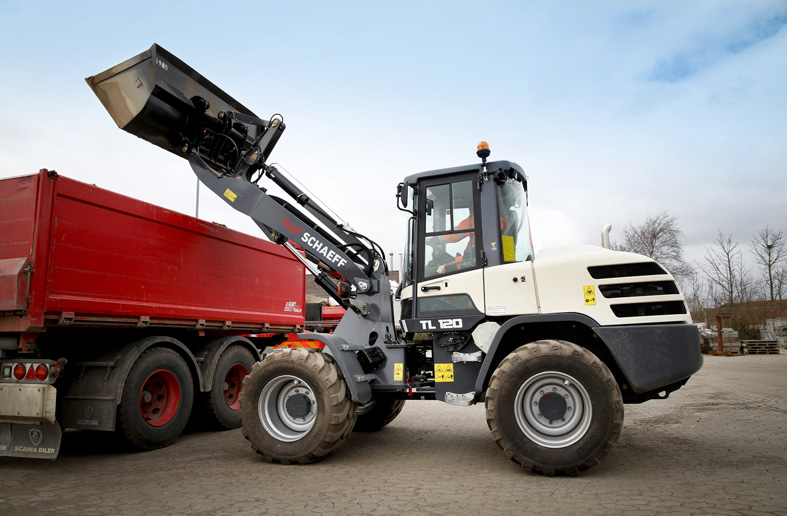

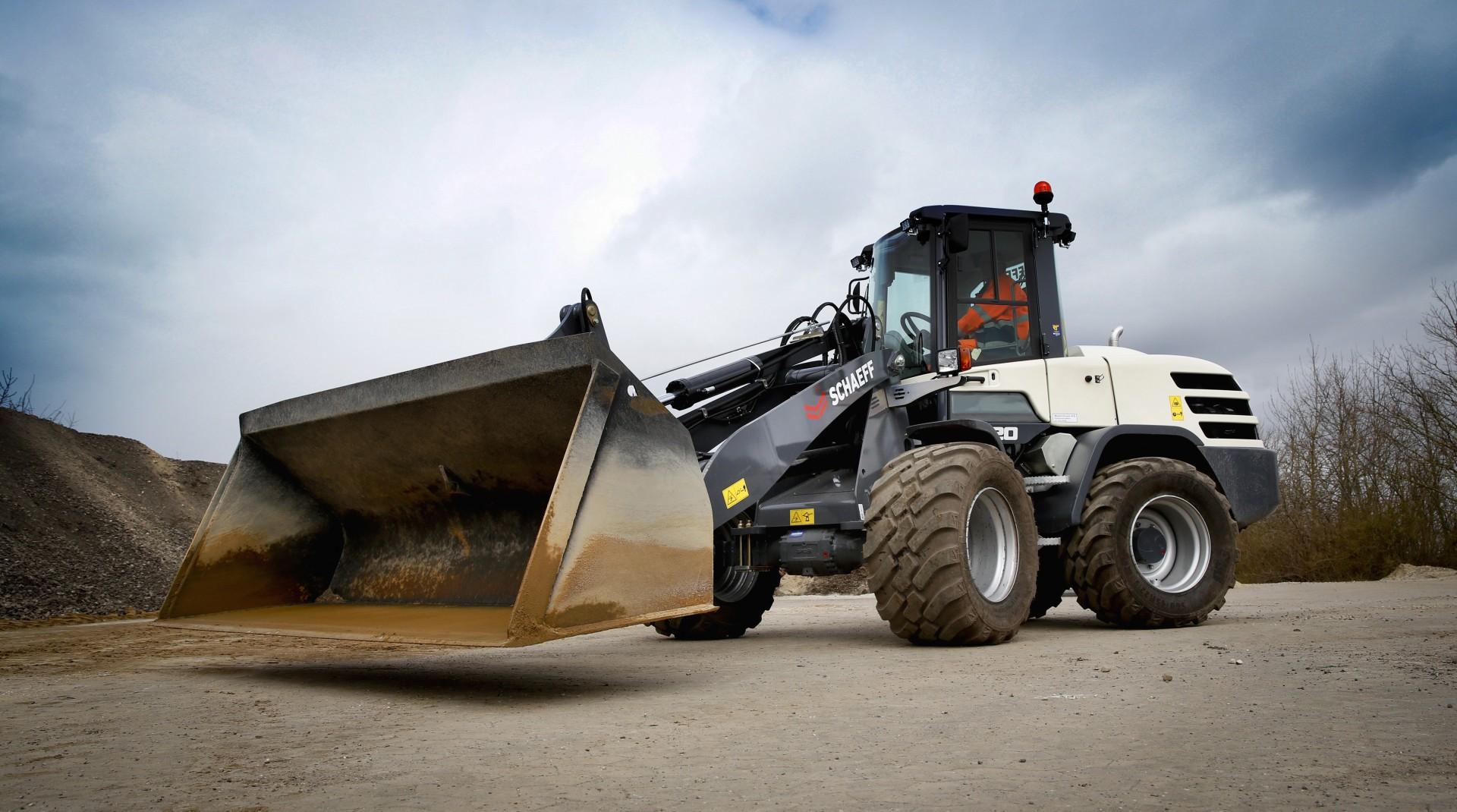

The Schaeff TL 120 is a wheel loader manufactured since 2017. It has a weight of 7 tons and a transport length of 5.48 meters. The…

The Schaeff TL 120 is a wheel loader manufactured since 2017. It has a weight of 7 tons and a transport length of 5.48 meters. The bucket capacity is 1.2 cubic meters, with a bucket width of 2.1 meters. The maximum discharge height is 2.6 meters. It has a travel speed of 36 km/h and a transport width of 2.1 meters. The transport height is 2.78 meters. The lifting force is 71 kN, and the turning radius outside is 4.68 meters. The bucket capacity ranges from a minimum of 1.2 cubic meters to a maximum of 1.8 cubic meters. It is equipped with a quick hitch mechanism.

TL 120

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TL 120 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7 t

Standard tyres: 405/70 R 20

Bucket width: 2.1 m

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 1.8 m³

Steering mode: KL

Transport length: 5.48 m

Transport width: 2.1 m

Transport height: 2.78 m

Travel speed: 36 km/h

Max. discharge height: 2.6 m

Turning radius outside: 4.68 m

Lifting force: 71 kN

Engine manuf.: Deutz

Engine type: TCD3.6 L04

Engine power: 74.4 kW

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

Max. torque: 410 Nm

No. of cylinders: 4

Cylinder bore x stroke: 98x120 mm

Emission level: EUIV / T4F

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TL 120 FAQ

When was the Schaeff TL 120 manufactured?

The Schaeff TL 120 was first produced in 2017.

How much does the Schaeff TL 120 weigh?

The Schaeff TL 120 weighs 7 tons.

What are the transport dimensions of the Schaeff TL 120 wheel loader?

The Schaeff TL 120 has a transport length of 5.48 meters, a transport width of 2.1 meters, and a transport height of 2.78 meters.

What is the travel speed of the Schaeff TL 120 wheel loader?

The Schaeff TL 120 has a travel speed of 36 km/h.

What are the standard tyre specifications for the Schaeff TL 120's undercarriage?

The Schaeff TL 120 comes equipped with standard tyres sized 405/70 R 20 on its undercarriage.

What are the maneuverability specifications of the Schaeff TL 120 wheel loader?

The Schaeff TL 120 has an articulated-frame steering system and an outside turning radius of 4.68 meters.

What is the lifting force of the Schaeff TL 120 wheel loader?

The Schaeff TL 120 wheel loader has a lifting force of 71 kN.

What is the maximum discharge height of the Schaeff TL 120?

The Schaeff TL 120 has a maximum discharge height of 2.6 meters.

What are the bucket specifications of the Schaeff TL 120 wheel loader?

The Schaeff TL 120 wheel loader has a bucket capacity ranging from 1.2 to 1.8 cubic meters and a bucket width of 2.1 meters.
