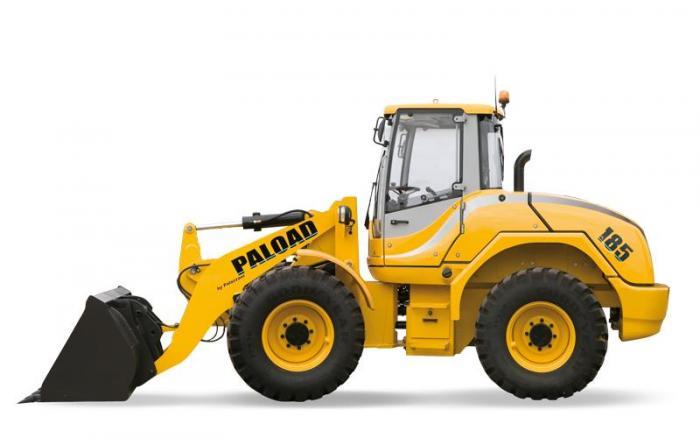

PL 185 Palazzani PL 185 Specifications & Technical Data (2008—2014)

The Palazzani PL 185 is a wheel loader manufactured from 2008 to 2014. It has a weight of 8 tons and a transport length of 6.06 me…

The Palazzani PL 185 is a wheel loader manufactured from 2008 to 2014. It has a weight of 8 tons and a transport length of 6.06 meters. The bucket capacity is 1.2 cubic meters, with a width of 2.2 meters. The maximum discharge height is 3.55 meters. It has a travel speed of 40 km/h and a transport width and height of 2.2 meters and 2.8 meters respectively. The turning radius outside is 5.12 meters. The minimum bucket capacity is also 1.2 cubic meters.

PL 185

Years of manufacture: 2008—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PL 185 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8 t

Standard tyres: 15.5x25 R

Bucket width: 2.2 m

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Steering mode: KL

Transport length: 6.06 m

Transport width: 2.2 m

Transport height: 2.8 m

Travel speed: 40 km/h

Max. discharge height: 3.55 m

Turning radius outside: 5.12 m

Model series: PL

Engine manuf.: Perkins

Engine type: 1104D-E44T

Engine power: 76.7 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity max., lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Palazzani PL 185 FAQ

When was the Palazzani PL 185 manufactured?

The Palazzani PL 185 was manufactured from 2008 to 2014.

How much does the Palazzani PL 185 wheel loader weigh?

The Palazzani PL 185 wheel loader weighs 8 tons.

What are the transport dimensions of the Palazzani PL 185 wheel loader?

The Palazzani PL 185 has a transport length of 6.06 meters, a transport width of 2.2 meters, and a transport height of 2.8 meters.

What is the travel speed of the Palazzani PL 185 wheel loader?

The Palazzani PL 185 has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Palazzani PL 185 wheel loader?

The Palazzani PL 185 wheel loader is equipped with standard tyres sized 15.5x25 R.

What are the maneuverability specifications of the Palazzani PL 185 wheel loader?

The Palazzani PL 185 has an articulated-frame steering system and an outside turning radius of 5.12 meters.

What is the maximum discharge height of the Palazzani PL 185?

The Palazzani PL 185 has a maximum discharge height of 3.55 meters.

What are the specifications of the bucket on the Palazzani PL 185 wheel loader?

The Palazzani PL 185 has a bucket with a capacity of 1.2 cubic meters, a minimum bucket capacity of 1.2 cubic meters, and a bucket width of 2.2 meters.
