PL 1105 Palazzani PL 1105 Specifications & Technical Data (2010—2022)

The Palazzani PL 1105 is a wheel loader manufactured by Palazzani from 2010 to 2022. It has a weight of 12 tons and a bucket width…

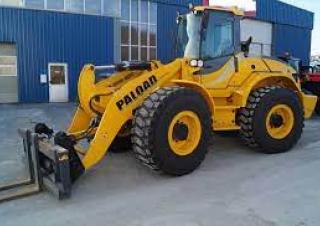

The Palazzani PL 1105 is a wheel loader manufactured by Palazzani from 2010 to 2022. It has a weight of 12 tons and a bucket width of 2 meters. The maximum discharge height is 3 meters, and it has a travel speed of 40 km/h. The transport height is also 3 meters. The bucket capacity ranges from a minimum of 1 cubic meter to a maximum of 2 cubic meters. Additionally, it is equipped with air conditioning.

PL 1105

Years of manufacture: 2010—2022

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PL 1105 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12 t

Standard tyres: 20.5 - 25

Bucket width: 2 m

Bucket capacity min.: 1 m³

Bucket capacity max.: 2 m³

Transport height: 3 m

Travel speed: 40 km/h

Max. discharge height: 3 m

Engine manuf.: Perkins

Engine type: 1104D - E44TA

Engine power: 109 kW

Displacement: 4.4 l

No. of cylinders: 4

Cylinder bore x stroke: 125 x 514 mm

Emission level: Stage III

More technical details, like: bucket capacity, steering mode, transport length, transport width, turning radius outside, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Palazzani PL 1105 FAQ

When was the Palazzani PL 1105 manufactured?

The Palazzani PL 1105 was manufactured from 2010 to 2022.

How much does the Palazzani PL 1105 weigh?

The Palazzani PL 1105 weighs 12 tons.

What is the transport height of the Palazzani PL 1105 wheel loader?

The transport height of the Palazzani PL 1105 wheel loader is 3 meters.

What is the travel speed of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 wheel loader is equipped with standard tyres sized 20.5 - 25.

What is the maximum discharge height of the Palazzani PL 1105?

The Palazzani PL 1105 has a maximum discharge height of 3 meters.

What are the specifications of the bucket on the Palazzani PL 1105 wheel loader?

The Palazzani PL 1105 wheel loader has a bucket with a capacity ranging from 1 to 2 cubic meters and a width of 2 meters.

How much is a Palazzani PL 1105 Wheel loader (2010u20132022) worth?

The residual value of the Palazzani PL 1105 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
