W170C New Holland W170C Specifications & Technical Data (2012—2026)

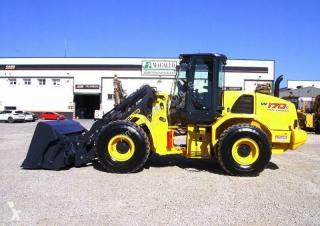

The New Holland W 170 C is a wheel loader manufactured since 2012. It has a weight of 14 tons and a bucket width of 2 meters. The …

The New Holland W 170 C is a wheel loader manufactured since 2012. It has a weight of 14 tons and a bucket width of 2 meters. The maximum discharge height is 4 meters, and it can travel at a speed of 40 km/h. The transport width and height are both 2 meters, and the turning radius outside is 6 meters. The bucket capacity ranges from 2 to 2 cubic meters. Special equipment includes a diesel particulate filter.

W170C

Years of manufacture: 2012—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W170C New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.5 t

Standard tyres: 20.5R25

Bucket width: 2.73 m

Bucket capacity min.: 2.4 m³

Bucket capacity max.: 2.7 m³

Transport width: 2.65 m

Transport height: 3.38 m

Travel speed: 40 km/h

Max. discharge height: 4.37 m

Turning radius outside: 6.5 m

Engine manuf.: FPT

Engine type: F4HFE613Y

Engine power: 145 kW

Displacement: 6.7 l

Revolutions at max torque: 1300 rpm

Max. torque: 950 Nm

No. of cylinders: 6

Emission level: Stage IIIB

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W170C New Holland Specification for North America (EN)

New Holland W170C FAQ

When was the New Holland W170 C manufactured?

The New Holland W170 C was first produced in 2012.

How much does the New Holland W170 C wheel loader weigh?

The New Holland W170 C wheel loader weighs 14.5 tons.

What are the transport dimensions of the New Holland W170 C wheel loader?

The New Holland W170 C has a transport width of 2.65 meters and a transport height of 3.38 meters.

What is the travel speed of the New Holland W170 C wheel loader?

The New Holland W170 C has a travel speed of 40 km/h.

What are the undercarriage specifications of the New Holland W170 C wheel loader?

The New Holland W170 C wheel loader is equipped with standard tyres sized 20.5R25.

What is the turning radius of the New Holland W170 C wheel loader?

The New Holland W170 C has an outside turning radius of 6.5 meters.

What is the maximum discharge height of the New Holland W170 C?

The New Holland W170 C has a maximum discharge height of 4.37 meters.

What are the specifications of the bucket on the New Holland W170 C wheel loader?

The New Holland W170 C wheel loader has a bucket with a maximum capacity of 2.7 cubic meters, a minimum capacity of 2.4 cubic meters, and a width of 2.73 meters.
