W110 B TC New Holland W110 B TC Specifications & Technical Data (2008—2026)

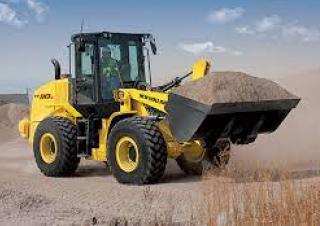

The New Holland W 110 B TC is a wheel loader manufactured by New Holland since 2008. It has a weight of 12 tons and a bucket width…

The New Holland W 110 B TC is a wheel loader manufactured by New Holland since 2008. It has a weight of 12 tons and a bucket width of 2 meters. The maximum discharge height is 3 meters, and it can travel at a speed of 35 km/h. The transport width and height are both 2 meters and 3 meters respectively. The turning radius outside is 4 meters. The bucket capacity ranges from a minimum of 1 cubic meter to a maximum of 1 cubic meter. It is equipped with a diesel particulate filter.

W110 B TC

Years of manufacture: 2008—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - W110 B TC New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.076 t

Standard tyres: 17.5 x 25

Bucket width: 2.55 m

Bucket capacity min.: 1.34 m³

Bucket capacity max.: 1.6 m³

Transport width: 2.389 m

Transport height: 3.277 m

Travel speed: 35.9 km/h

Max. discharge height: 3.744 m

Turning radius outside: 4.972 m

Engine manuf.: FPT

Engine type: 445TA/EGE

Engine power: 106 kW

Displacement: 4.5 l

Revolutions at max torque: 1600 rpm

Max. torque: 730 Nm

No. of cylinders: 4

Cylinder bore x stroke: 104 x 132 mm

Emission level: Tier 3

More technical details, like: bucket capacity, steering mode, transport length, lifting force, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: Yes
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

W110 B TC New Holland Specification for North America (EN)

New Holland W110 B TC FAQ

When was the New Holland W110 B TC manufactured?

The New Holland W110 B TC was first produced in 2008.

How much does the New Holland W110 B TC weigh?

The New Holland W110 B TC weighs 12.08 tons.

What are the transport dimensions of the New Holland W110 B TC wheel loader?

The New Holland W110 B TC has a transport width of 2.39 meters and a transport height of 3.28 meters.

What is the travel speed of the New Holland W110 B TC wheel loader?

The New Holland W110 B TC has a travel speed of 35.9 km/h.

What are the undercarriage specifications of the New Holland W110 B TC wheel loader?

The New Holland W110 B TC wheel loader is equipped with standard tyres sized 17.5 x 25.

What is the turning radius of the New Holland W110 B TC wheel loader?

The New Holland W110 B TC has an outside turning radius of 4.972 meters.

What is the material handling capacity of the New Holland W110 B TC in terms of discharge height?

The New Holland W110 B TC has a maximum discharge height of 3.74 meters.

What are the bucket specifications of the New Holland W110 B TC wheel loader?

The New Holland W110 B TC wheel loader has a bucket width of 2.55 meters, with a capacity ranging from 1.34 to 1.6 cubic meters.
