AT 900 Mecalac AT 900 Specifications & Technical Data (2014—2015)

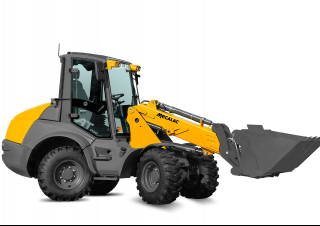

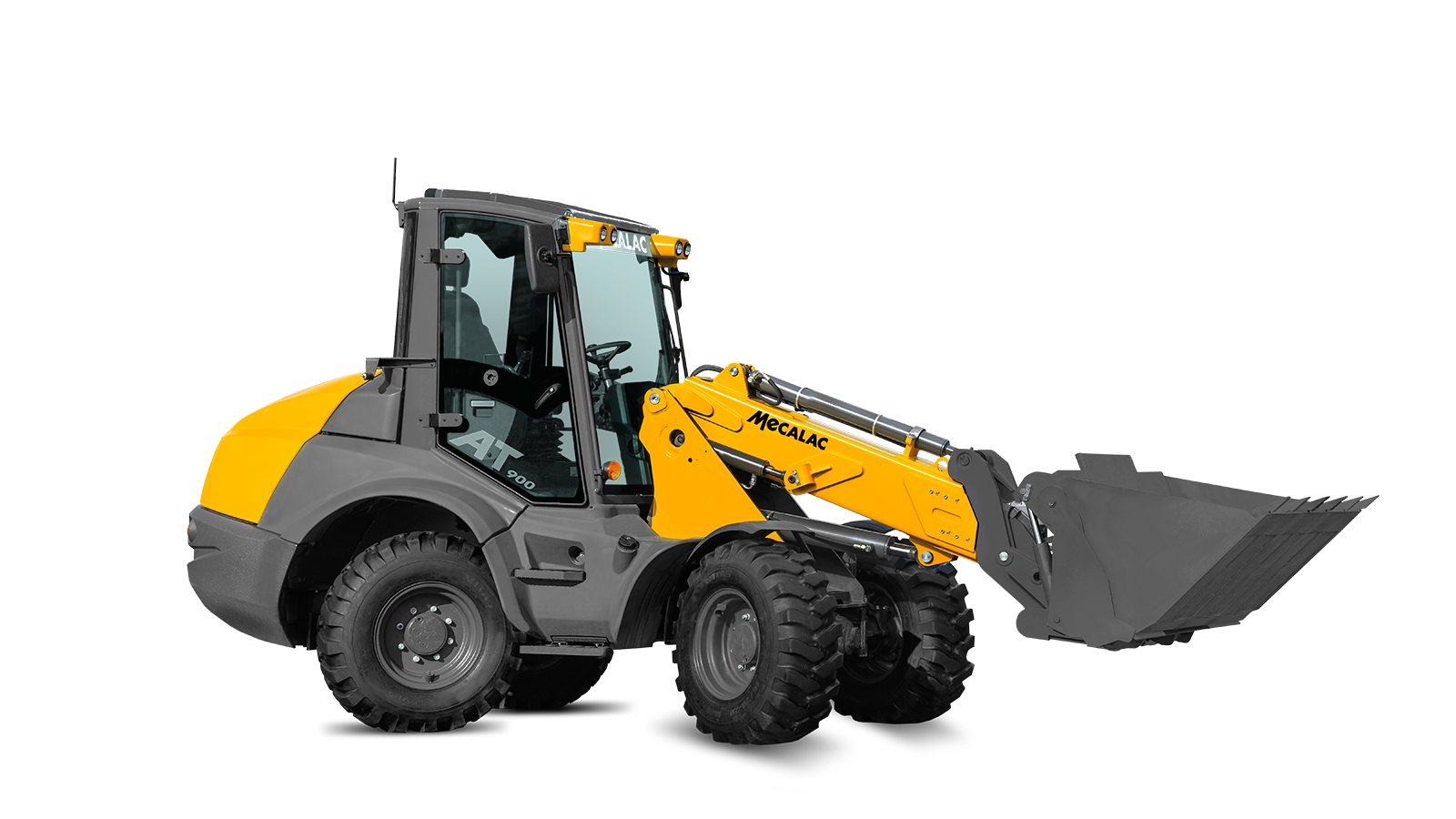

The Mecalac AT 900 is a wheel loader manufactured by Mecalac from 2014 to 2015. It has a weight of 6.5 tons and a transport length…

The Mecalac AT 900 is a wheel loader manufactured by Mecalac from 2014 to 2015. It has a weight of 6.5 tons and a transport length of 5.85 meters. The bucket capacity is 0.9 cubic meters, and it has a maximum discharge height of 3.56 meters. The travel speed of the machine is 40 km/h. It has a transport width of 2.1 meters and a transport height of 2.9 meters. The lifting force of the wheel loader is 38 kN. It is equipped with a quick hitch hydr., telescopic special equipment.

AT 900

Years of manufacture: 2014—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AT 900 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.5 t

Standard tyres: 16/70-20

Bucket capacity: 0.9 m³

Bucket capacity min.: 0.9 m³

Steering mode: AL

Transport length: 5.85 m

Transport width: 2.1 m

Transport height: 2.9 m

Travel speed: 40 km/h

Max. discharge height: 3.56 m

Lifting force: 38 kN

Model series: AT

More technical details, like: bucket width, bucket capacity max., turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

AT 900 Mecalac Specification for Europe (EN)

Mecalac AT 900 FAQ

When was the Mecalac AT 900 manufactured?

The Mecalac AT 900 was manufactured from 2014 to 2015.

How much does the Mecalac AT 900 weigh?

The Mecalac AT 900 weighs 6.5 tons.

What are the transport dimensions of the Mecalac AT 900 wheel loader?

The Mecalac AT 900 has a transport length of 5.85 meters, a transport width of 2.1 meters, and a transport height of 2.9 meters.

What is the travel speed of the Mecalac AT 900 wheel loader?

The Mecalac AT 900 has a travel speed of 40 km/h.

What are the standard tyres specifications of the Mecalac AT 900?

The Mecalac AT 900 is equipped with standard tyres sized 16/70-20.

What is the steering mode of the Mecalac AT 900?

The Mecalac AT 900 has all-wheel steering.

What is the power rating of the Mecalac AT 900 wheel loader?

The source data does not provide power rating information for the Mecalac AT 900 wheel loader.

What is the maximum discharge height of the Mecalac AT 900?

The Mecalac AT 900 has a maximum discharge height of 3.56 meters.

What is the bucket capacity of the Mecalac AT 900 wheel loader?

The Mecalac AT 900 wheel loader has a bucket capacity of 0.9 cubic meters.
