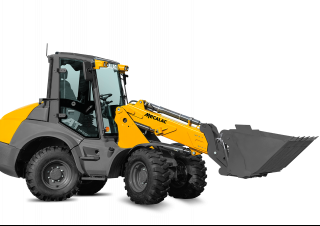

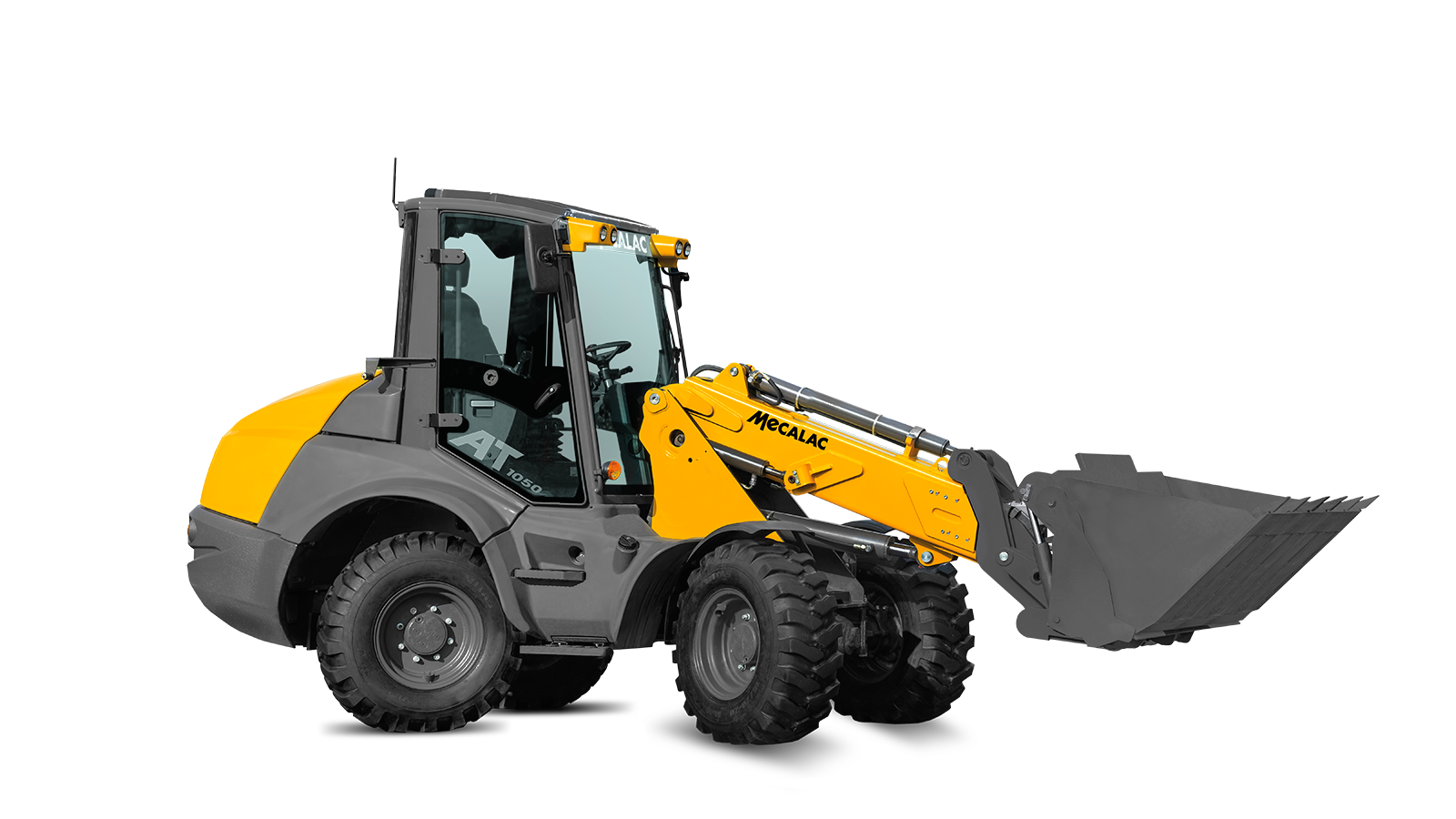

AT 1050 Mecalac AT 1050 Specifications & Technical Data (2014—2015)

The Mecalac AT 1050 is a wheel loader manufactured by Mecalac from 2014 to 2015. It has a weight of 7.15 tons and a transport leng…

The Mecalac AT 1050 is a wheel loader manufactured by Mecalac from 2014 to 2015. It has a weight of 7.15 tons and a transport length of 5.92 meters. The bucket capacity is 1.05 cubic meters, with a maximum discharge height of 3.56 meters. It has a travel speed of 40 km/h and a transport width of 2.1 meters. The transport height is 2.9 meters. The lifting force is 47 kN. The bucket capacity ranges from a minimum of 1.05 cubic meters to a maximum of 1.6 cubic meters. It is equipped with special features such as air conditioning, a quick hitch hydraulic system, and a telescopic function.

AT 1050

Years of manufacture: 2014—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AT 1050 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.15 t

Standard tyres: 16/70-20

Bucket capacity: 1.05 m³

Bucket capacity min.: 1.05 m³

Bucket capacity max.: 1.6 m³

Steering mode: AL

Transport length: 5.92 m

Transport width: 2.1 m

Transport height: 2.9 m

Travel speed: 40 km/h

Max. discharge height: 3.56 m

Lifting force: 47 kN

Model series: AT

More technical details, like: bucket width, turning radius outside, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: Yes
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

AT 1050 Mecalac Specification for Europe (EN)

Mecalac AT 1050 FAQ

When was the Mecalac AT 1050 manufactured?

The Mecalac AT 1050 was manufactured from 2014 to 2015.

How much does the Mecalac AT 1050 weigh?

The Mecalac AT 1050 weighs 7.15 tons.

What are the transport dimensions of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 has a transport length of 5.92 meters, a transport width of 2.1 meters, and a transport height of 2.9 meters.

What is the travel speed of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 is equipped with standard tyres sized 16/70-20.

What is the steering mode of the Mecalac AT 1050?

The Mecalac AT 1050 has an all-wheel steering mode.

What is the power rating of the Mecalac AT 1050 wheel loader?

The power rating of the Mecalac AT 1050 wheel loader is not provided in the available data.

What is the maximum discharge height of the Mecalac AT 1050?

The Mecalac AT 1050 has a maximum discharge height of 3.56 meters.

What are the bucket capacity specifications of the Mecalac AT 1050 wheel loader?

The Mecalac AT 1050 wheel loader has a bucket capacity of 1.05 mu00b3, with a minimum capacity of 1.05 mu00b3 and a maximum capacity of 1.6 mu00b3.
