AS1600 Mecalac AS1600 Specifications & Technical Data (2021—2026)

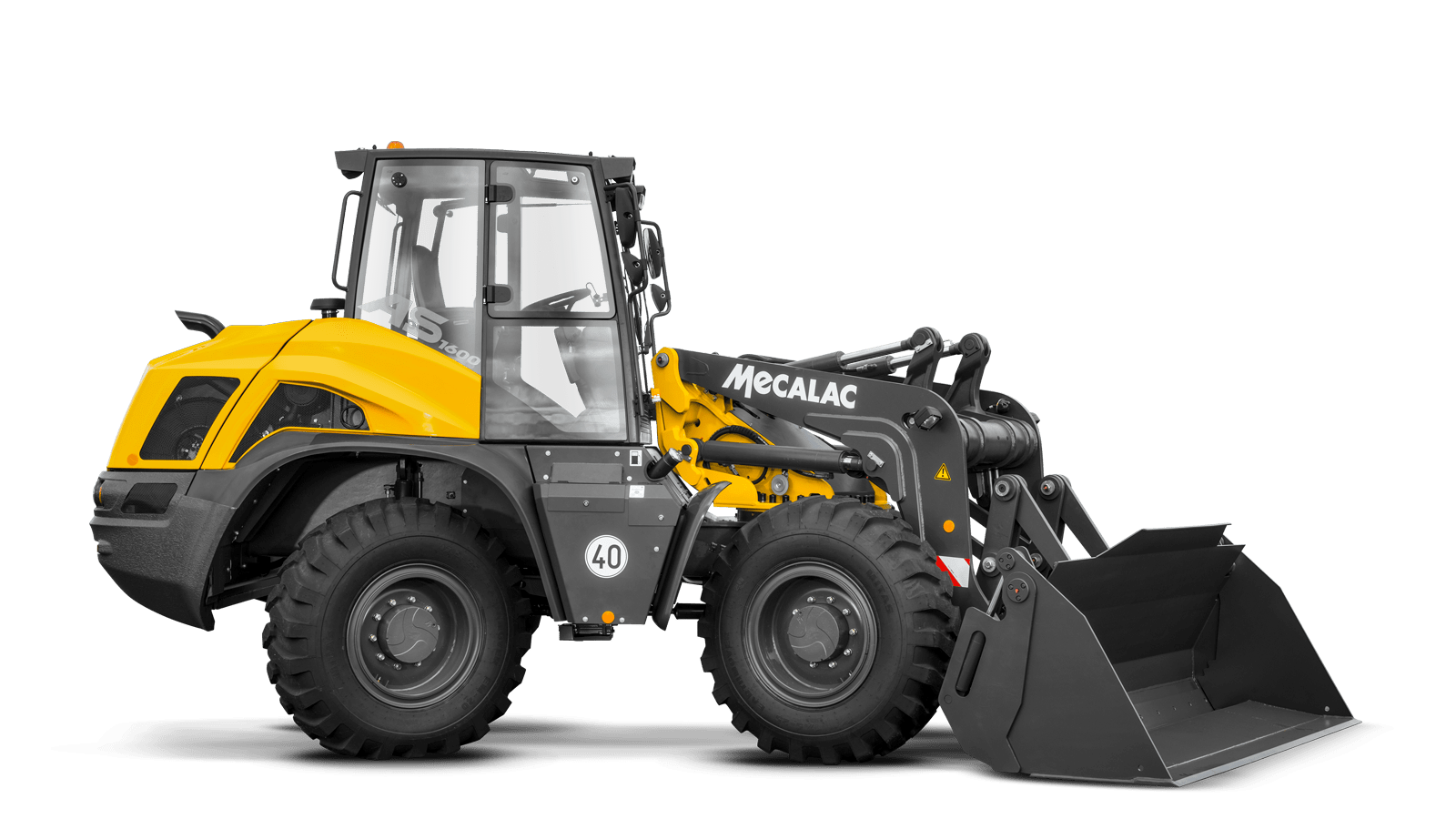

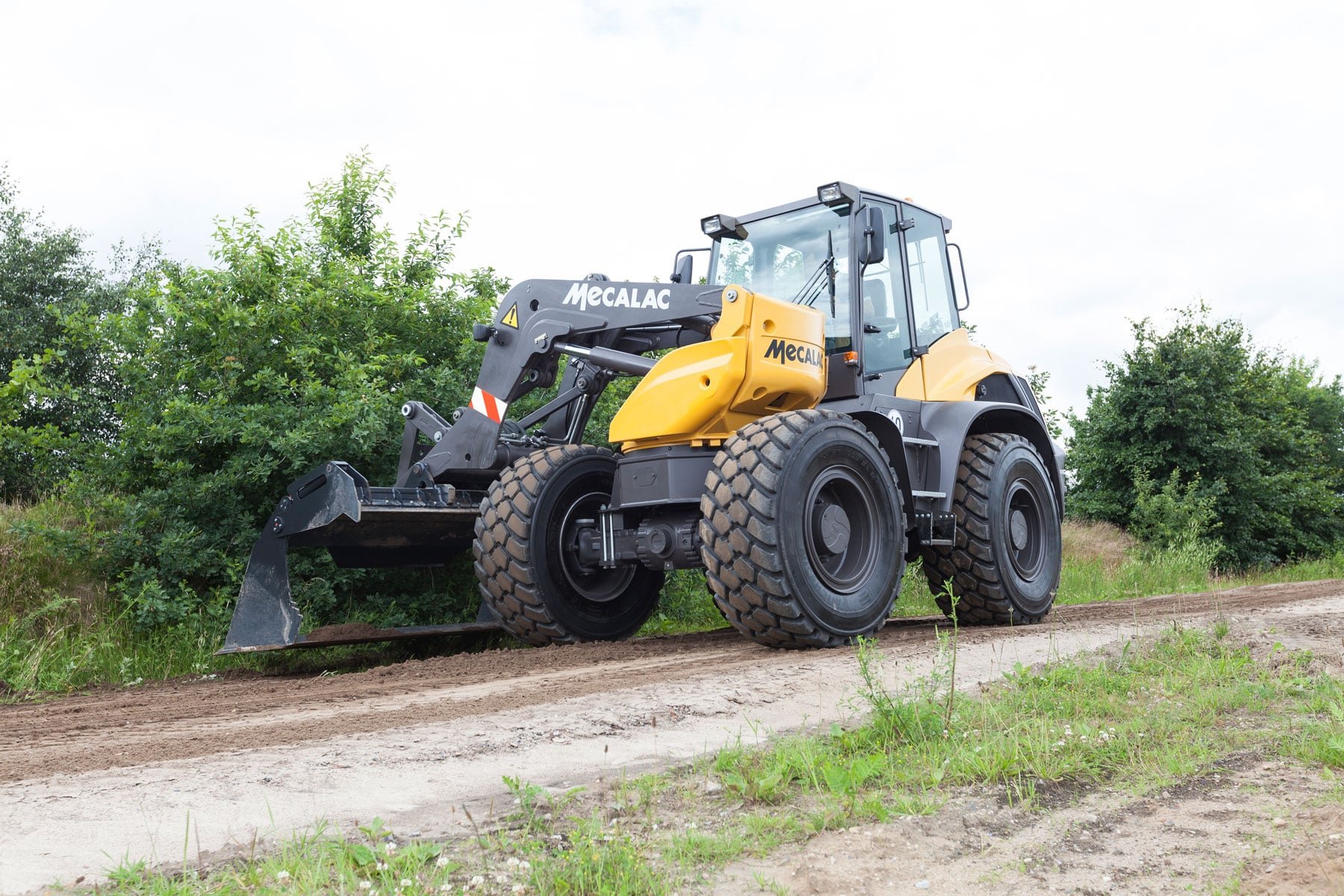

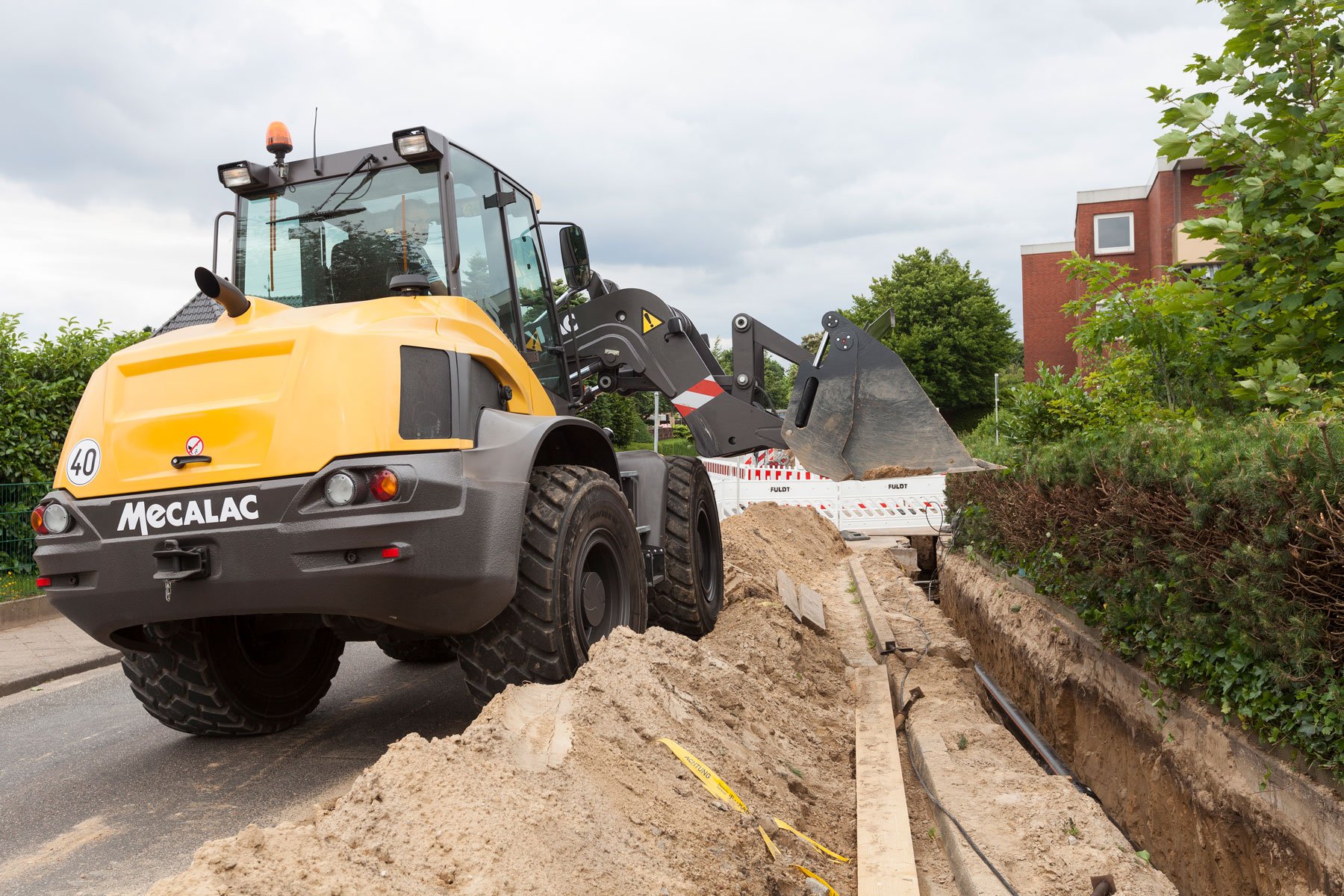

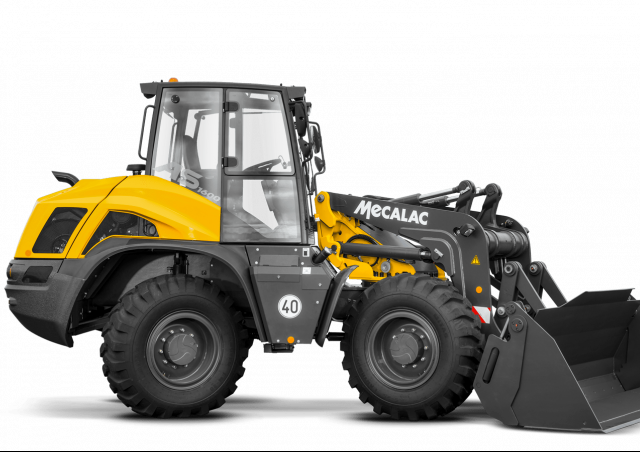

The Mecalac AS1600 is a wheel loader manufactured since 2021. It has a weight of 10.92 tons and a transport length of 6.58 meters.…

The Mecalac AS1600 is a wheel loader manufactured since 2021. It has a weight of 10.92 tons and a transport length of 6.58 meters. The bucket capacity is 1.6 cubic meters, with a maximum discharge height of 3.1 meters. It has a travel speed of 40 km/h and a transport width of 2.48 meters. The transport height is also 3.1 meters. The lifting force of this machine is 69 kN. It has a maximum bucket capacity of 2.5 cubic meters and a minimum bucket capacity of 1.6 cubic meters. Special equipment includes air conditioning, a quick hitch hydraulic system, and a swing loader.

AS1600

Years of manufacture: 2021—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AS1600 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.92 t

Standard tyres: 17.5-25

Bucket capacity: 1.6 m³

Bucket capacity min.: 1.6 m³

Bucket capacity max.: 2.5 m³

Steering mode: AL

Transport length: 6.58 m

Transport width: 2.48 m

Transport height: 3.1 m

Travel speed: 40 km/h

Max. discharge height: 3.1 m

Lifting force: 69 kN

Model series: AS

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 100 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Max. torque: 410/1600 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket width, turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: Yes
telescopic: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AS1600 FAQ

When was the Mecalac AS1600 manufactured?

The Mecalac AS1600 was first produced in 2021.

How much does the Mecalac AS1600 wheel loader weigh?

The Mecalac AS1600 wheel loader weighs 10.92 tons.

What are the transport dimensions of the Mecalac AS1600 wheel loader?

The Mecalac AS1600 has a transport length of 6.58 meters, a transport width of 2.48 meters, and a transport height of 3.1 meters.

What is the travel speed of the Mecalac AS1600 wheel loader?

The Mecalac AS1600 has a travel speed of 40 km/h.

What is the standard tyre size of the Mecalac AS1600 wheel loader?

The Mecalac AS1600 wheel loader has standard tyres sized 17.5-25.

What is the steering mode of the Mecalac AS1600?

The Mecalac AS1600 has an all-wheel steering mode.

What is the lifting force of the Mecalac AS1600 wheel loader?

The Mecalac AS1600 wheel loader has a lifting force of 69 kN.

What is the material handling capacity of the Mecalac AS1600 in terms of discharge height?

The Mecalac AS1600 has a maximum discharge height of 3.1 meters.

What are the bucket capacity specifications of the Mecalac AS1600 wheel loader?

The Mecalac AS1600 wheel loader has a bucket capacity ranging from a minimum of 1.6 mu00b3 to a maximum of 2.5 mu00b3, with a standard bucket capacity of 1.6 mu00b3.

How much is a Mecalac AS1600 Wheel loader (2021u20132025) worth?

The residual value of the Mecalac AS1600 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
