AF 1200 Mecalac AF 1200 Specifications & Technical Data (2012—2015)

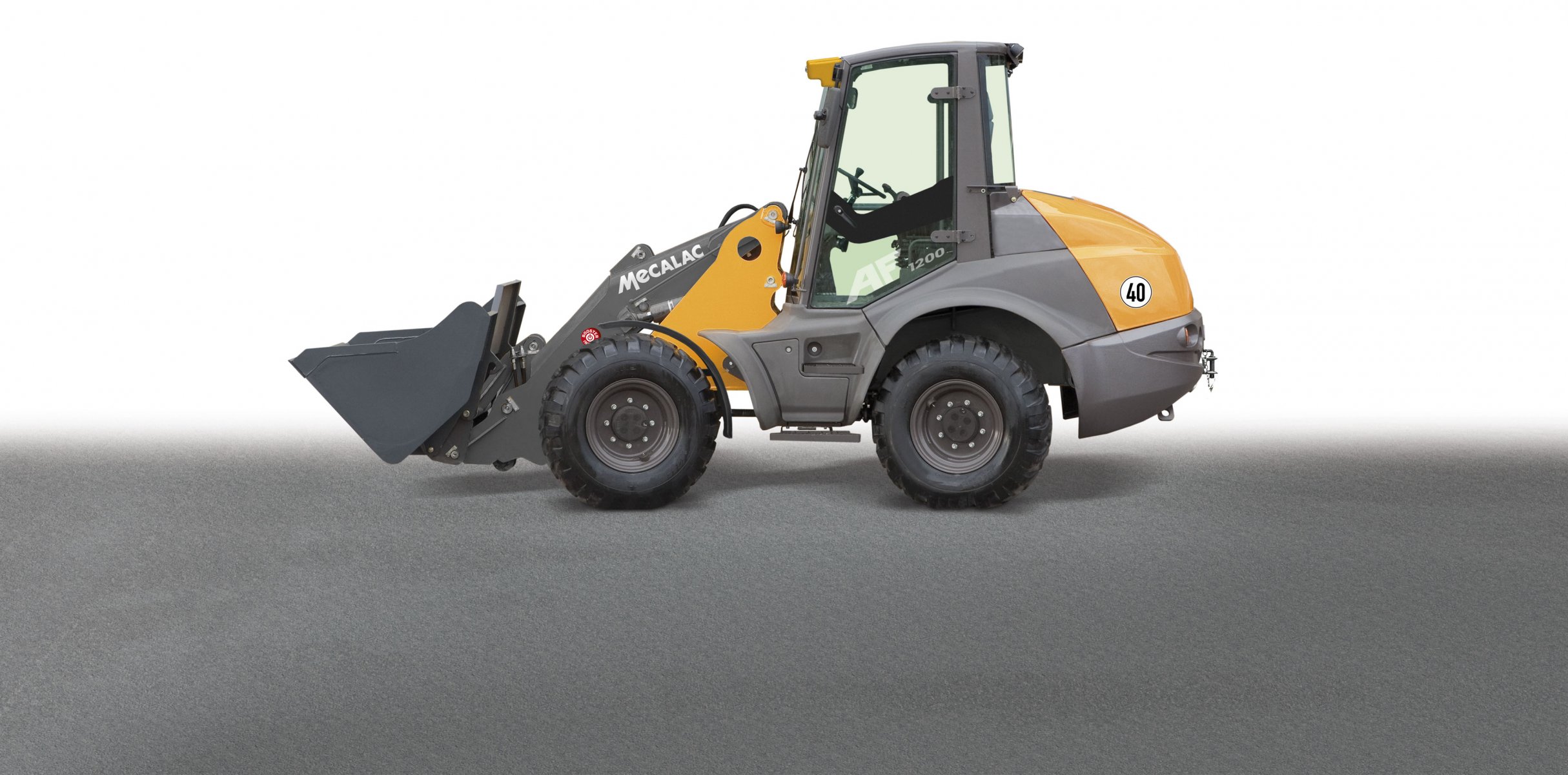

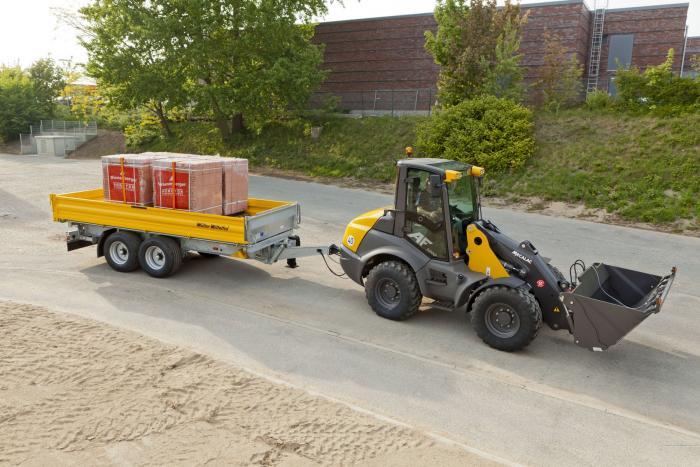

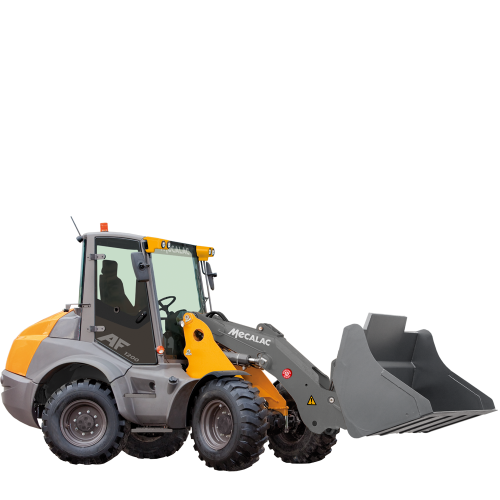

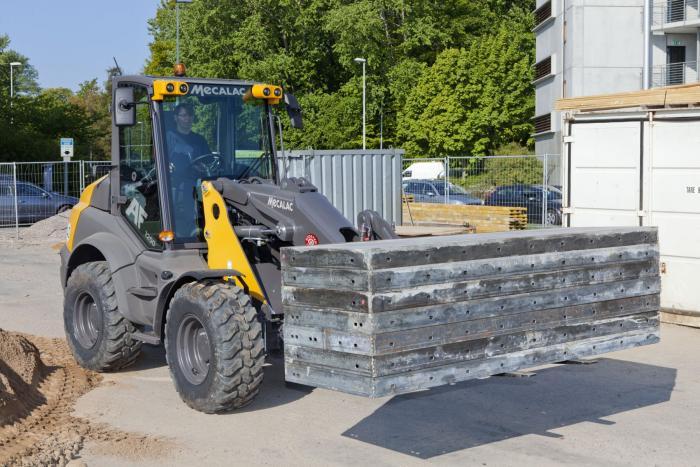

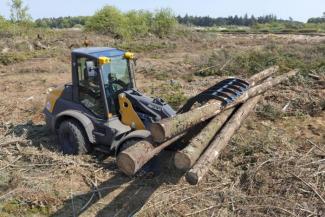

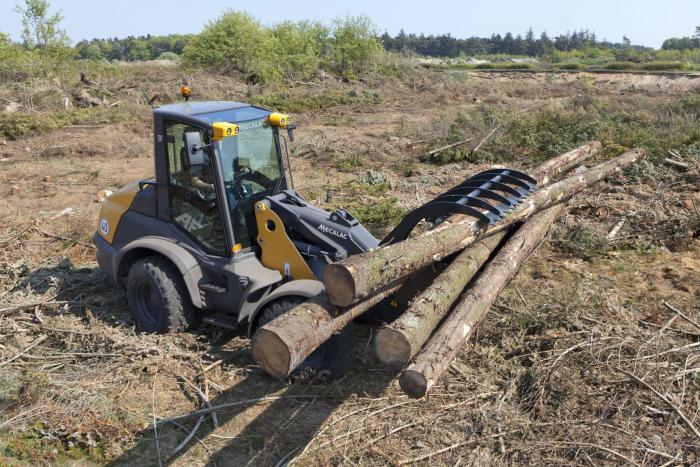

The Mecalac AF 1200 is a wheel loader manufactured by Mecalac from 2012 to 2015. It has a weight of 6 tons and a transport length …

The Mecalac AF 1200 is a wheel loader manufactured by Mecalac from 2012 to 2015. It has a weight of 6 tons and a transport length of 6.08 meters. The bucket capacity is 1.2 cubic meters, with a maximum discharge height of 2.83 meters. The travel speed of this machine is 30 km/h. It has a transport width of 2.1 meters and a transport height of 2.83 meters. The lifting force is 77 kN. The bucket capacity ranges from a minimum of 1.2 cubic meters to a maximum of 1.7 cubic meters. It is equipped with a quick hitch hydr. special equipment.

AF 1200

Years of manufacture: 2012—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AF 1200 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6 t

Standard tyres: 16/17-20

Bucket capacity: 1.2 m³

Bucket capacity min.: 1.2 m³

Bucket capacity max.: 1.7 m³

Steering mode: AL

Transport length: 6.08 m

Transport width: 2.1 m

Transport height: 2.83 m

Travel speed: 30 km/h

Max. discharge height: 2.83 m

Lifting force: 77 kN

Model series: AF

Engine manuf.: Cummins

Engine type: B3.3ST

Engine power: 55 kW

Displacement: 3.3 l

Revolutions at max torque: 1600 rpm

More technical details, like: bucket width, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac AF 1200 FAQ

When was the Mecalac AF 1200 manufactured?

The Mecalac AF 1200 was manufactured from 2012 to 2015.

How much does the Mecalac AF 1200 weigh?

The Mecalac AF 1200 weighs 6 tons.

What are the transport dimensions of the Mecalac AF 1200 wheel loader?

The Mecalac AF 1200 has a transport length of 6.08 meters, a transport width of 2.1 meters, and a transport height of 2.83 meters.

What is the travel speed of the Mecalac AF 1200 wheel loader?

The Mecalac AF 1200 wheel loader has a travel speed of 30 km/h.

What are the undercarriage specifications of the Mecalac AF 1200 wheel loader?

The Mecalac AF 1200 wheel loader is equipped with standard tyres sized 16/17-20.

What is the steering mode of the Mecalac AF 1200?

The Mecalac AF 1200 has an all-wheel steering mode.

What is the lifting force of the Mecalac AF 1200 wheel loader?

The Mecalac AF 1200 wheel loader has a lifting force of 77 kN.

What is the maximum discharge height of the Mecalac AF 1200?

The Mecalac AF 1200 has a maximum discharge height of 2.83 meters.

What are the bucket capacity specifications of the Mecalac AF 1200 wheel loader?

The Mecalac AF 1200 has a bucket capacity ranging from a minimum of 1.2 mu00b3 to a maximum of 1.7 mu00b3, with a standard bucket capacity of 1.2 mu00b3.
