L 13 Ljungby L 13 Specifications & Technical Data (2010—2018)

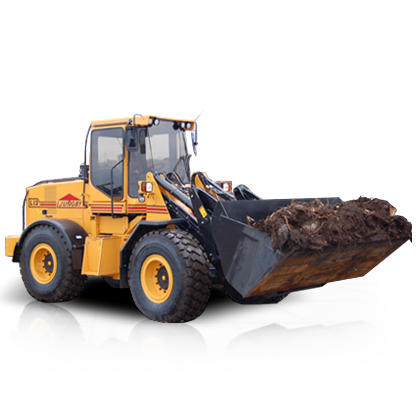

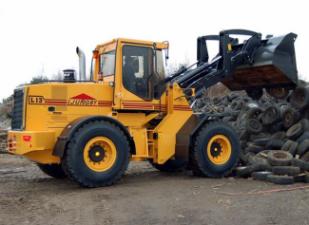

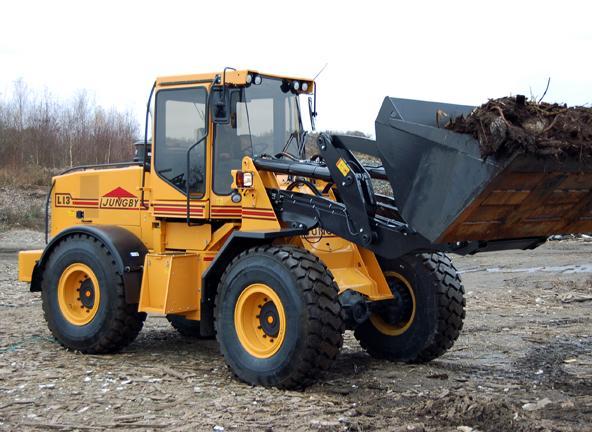

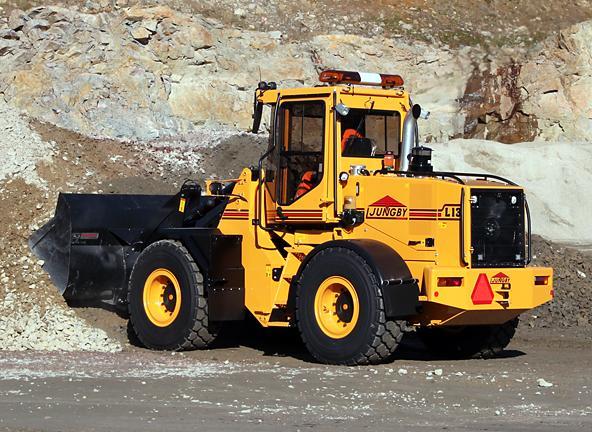

The Ljungby L 13 is a wheel loader manufactured from 2010 to 2018. It has a weight of 11.5 tons and a transport length of 7.16 met…

The Ljungby L 13 is a wheel loader manufactured from 2010 to 2018. It has a weight of 11.5 tons and a transport length of 7.16 meters. The bucket capacity is 2.2 cubic meters, with a bucket width of 2.63 meters. The maximum discharge height is 4.18 meters. It has a transport width of 2.53 meters and a transport height of 3.3 meters. The lifting force is 110 kN, and the turning radius outside is 5.57 meters. The minimum bucket capacity is 2.2 cubic meters.

L 13

Years of manufacture: 2010—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - L 13 Ljungby

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.5 t

Standard tyres: 20.5 R25

Bucket width: 2.63 m

Bucket capacity: 2.2 m³

Bucket capacity min.: 2.2 m³

Steering mode: KL

Transport length: 7.16 m

Transport width: 2.53 m

Transport height: 3.3 m

Max. discharge height: 4.18 m

Turning radius outside: 5.57 m

Lifting force: 110 kN

Engine manuf.: Mercedes-Benz

Engine type: OM904 LAT

Engine power: 130 kW

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter: No
Swing loader: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Ljungby L 13 FAQ

When was the Ljungby L 13 manufactured?

The Ljungby L 13 was manufactured from 2010 to 2018.

How much does the Ljungby L 13 wheel loader weigh?

The Ljungby L 13 wheel loader weighs 11.5 tons.

What are the transport dimensions of the Ljungby L 13 wheel loader?

The Ljungby L 13 has a transport length of 7.16 meters, a transport width of 2.53 meters, and a transport height of 3.3 meters.

What are the undercarriage specifications of the Ljungby L 13 wheel loader?

The Ljungby L 13 wheel loader is equipped with standard tyres sized 20.5 R25.

What are the maneuverability specifications of the Ljungby L 13 wheel loader?

The Ljungby L 13 wheel loader has an articulated-frame steering system and an outside turning radius of 5.57 meters.

What are the power ratings of the Ljungby L 13 wheel loader?

The source data does not provide power rating information for the Ljungby L 13 wheel loader.

What is the maximum discharge height of the Ljungby L 13?

The Ljungby L 13 has a maximum discharge height of 4.18 meters.

What are the specifications of the bucket on the Ljungby L 13 wheel loader?

The Ljungby L 13 wheel loader has a bucket capacity of 2.2 cubic meters, a minimum bucket capacity of 2.2 cubic meters, and a bucket width of 2.63 meters.

How much is a Ljungby L 13 Wheel loader (2010u20132018) worth?

The residual value of the Ljungby L 13 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
