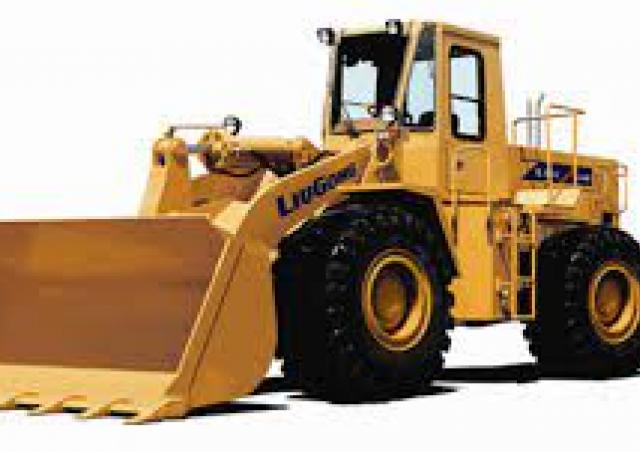

ZL40B Liugong ZL40B Specifications & Technical Data (2010—2025)

The Liugong ZL40B is a wheel loader manufactured since 2010. It has a weight of 13 tons and a bucket capacity of 2 cubic meters. T…

The Liugong ZL40B is a wheel loader manufactured since 2010. It has a weight of 13 tons and a bucket capacity of 2 cubic meters. The bucket width is 2 meters, and it can reach a maximum discharge height of 2 meters. The travel speed of this machine is 35 km/h. It has a transport width of 2 meters and a transport height of 3 meters. The turning radius outside is 6 meters. The maximum bucket capacity is also 2 cubic meters.

Wheel Loaders Liugong ZL40B

Visit Liugong live at

Technical specs - ZL40B Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.8 t
Standard tyres
20.5 - 25
Bucket width
2.706 m
Bucket capacity
2.2 m³
Bucket capacity max.
2.2 m³
Transport width
2.47 m
Transport height
3.337 m
Travel speed
35 km/h
Max. discharge height
2.8 m
Turning radius outside
6.63 m

More technical details, like: bucket capacity min., steering mode, transport length, lifting force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., steering mode, transport length, lifting force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong ZL40B FAQ

When was the Liugong ZL40B manufactured?

The Liugong ZL40B was first produced in 2010.

How much does the Liugong ZL40B wheel loader weigh?

The Liugong ZL40B wheel loader weighs 13.8 tons.

What are the transport dimensions of the Liugong ZL40B wheel loader?

The Liugong ZL40B has a transport width of 2.47 meters and a transport height of 3.34 meters.

What is the travel speed of the Liugong ZL40B wheel loader?

The Liugong ZL40B has a travel speed of 35 km/h.

What is the standard tyre size of the Liugong ZL40B wheel loader?

The Liugong ZL40B wheel loader has standard tyres sized 20.5-25.

What is the turning radius of the Liugong ZL40B wheel loader?

The Liugong ZL40B has an outside turning radius of 6.63 meters.

What is the maximum discharge height of the Liugong ZL40B wheel loader?

The Liugong ZL40B wheel loader has a maximum discharge height of 2.8 meters.

What are the specifications of the bucket on the Liugong ZL40B wheel loader?

The Liugong ZL40B wheel loader has a bucket capacity of 2.2 cubic meters and a bucket width of 2.71 meters.

How much is a Liugong ZL40B Wheel loader (2010u20132025) worth?

The residual value of the Liugong ZL40B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
