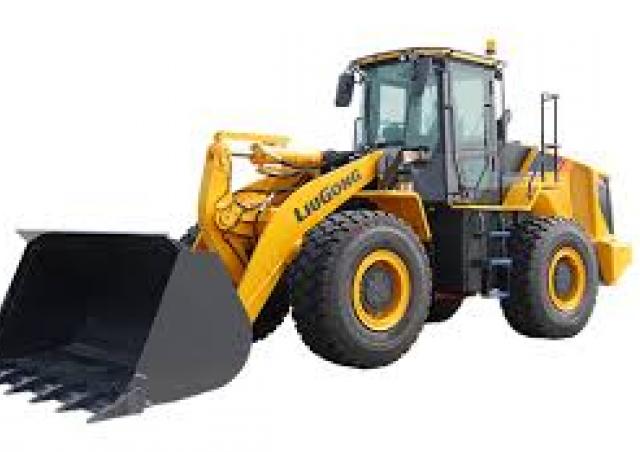

848H Liugong 848H Specifications & Technical Data (2017—2026)

The Liugong 848H is a wheel loader manufactured since 2017. It has a weight of 14.3 tons and a transport length of 7.815 meters. T…

The Liugong 848H is a wheel loader manufactured since 2017. It has a weight of 14.3 tons and a transport length of 7.815 meters. The maximum discharge height is 2.89 meters, and it can travel at a speed of 40 km/h. The transport width is 2.548 meters, and the transport height is 3.31 meters. It has a lifting force of 114 kN and a turning radius outside of 5.46 meters. The bucket capacity ranges from 2.5 to 4 cubic meters, and it is equipped with air conditioning.

Wheel Loaders Liugong 848H

Visit Liugong live at

Technical specs - 848H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.3 t
Standard tyres
20.5-25
Bucket capacity min.
2.5 m³
Bucket capacity max.
4 m³
Transport length
7.815 m
Transport width
2.548 m
Transport height
3.31 m
Travel speed
40 km/h
Max. discharge height
2.89 m
Turning radius outside
5.46 m
Lifting force
114 kN
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
128 kW
Displacement
6.7 l
Revolutions at max torque
2200 rpm
No. of cylinders
6
Emission level
Euro III a/Tier 3

More technical details, like: bucket width, bucket capacity, steering mode, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 848H FAQ

When was the Liugong 848H manufactured?

The Liugong 848H was first produced in 2017.

How much does the Liugong 848H wheel loader weigh?

The Liugong 848H wheel loader weighs 14.3 tons.

What are the transport dimensions of the Liugong 848H wheel loader?

The Liugong 848H has a transport length of 7.82 meters, a transport width of 2.55 meters, and a transport height of 3.31 meters.

What is the travel speed of the Liugong 848H wheel loader?

The Liugong 848H has a travel speed of 40 km/h.

What are the undercarriage specifications of the Liugong 848H wheel loader?

The Liugong 848H wheel loader is equipped with standard tyres sized 20.5-25.

What is the turning radius of the Liugong 848H wheel loader?

The Liugong 848H has an outside turning radius of 5.46 meters.

What is the lifting force of the Liugong 848H wheel loader?

The Liugong 848H wheel loader has a lifting force of 114 kN.

What is the maximum discharge height of the Liugong 848H wheel loader?

The Liugong 848H wheel loader has a maximum discharge height of 2.89 meters.

What are the bucket capacity specifications of the Liugong 848H wheel loader?

The Liugong 848H wheel loader has a bucket capacity ranging from 2.5 to 4 cubic meters.

How much is a Liugong 848H Wheel loader (2017u20132025) worth?

The residual value of the Liugong 848H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
