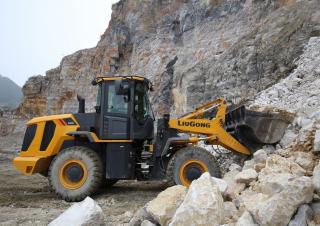

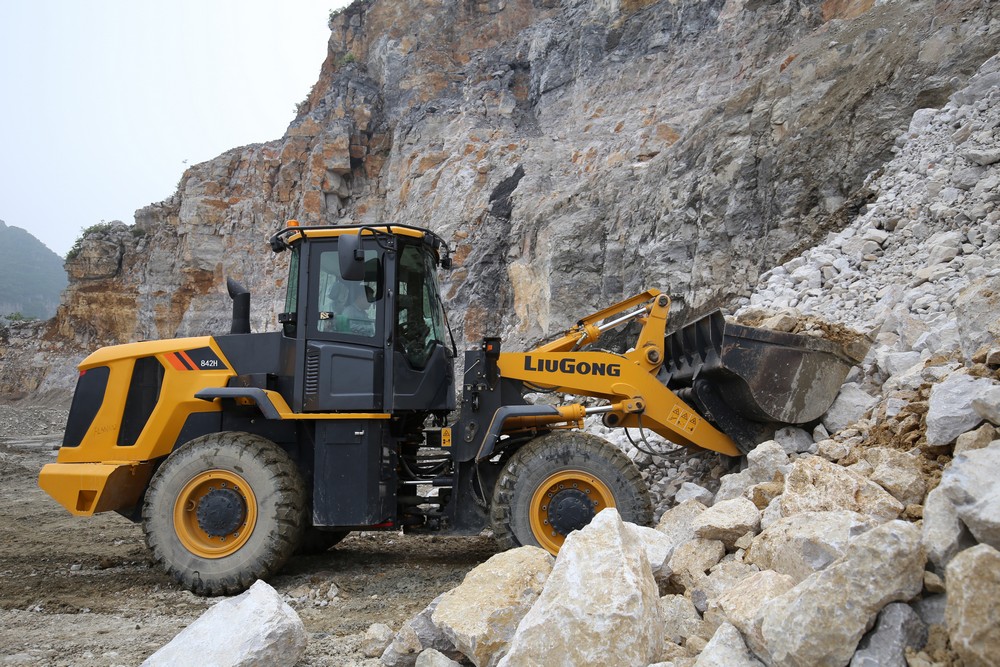

842H Liugong 842H Specifications & Technical Data (2017—2026)

The Liugong 842H is a wheel loader manufactured since 2017. It has a weight of 12.7 tons and a transport length of 7.572 meters. T…

The Liugong 842H is a wheel loader manufactured since 2017. It has a weight of 12.7 tons and a transport length of 7.572 meters. The bucket capacity is 2.3 cubic meters, with a maximum discharge height of 2.88 meters. The travel speed of this machine is 43 km/h, and it has a transport width of 2.48 meters and a transport height of 3.3 meters. The lifting force is 124 kN, and the turning radius outside is 5.393 meters. The bucket capacity ranges from a minimum of 1.8 cubic meters to a maximum of 4 cubic meters. Additionally, it is equipped with air conditioning.

Wheel Loaders Liugong 842H

Visit Liugong live at

Technical specs - 842H Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.7 t
Standard tyres
20.5-25
Bucket capacity
2.3 m³
Bucket capacity min.
1.8 m³
Bucket capacity max.
4 m³
Transport length
7.572 m
Transport width
2.48 m
Transport height
3.3 m
Travel speed
43 km/h
Max. discharge height
2.88 m
Turning radius outside
5.393 m
Lifting force
124 kN
Engine manuf.
Weichai
Engine type
WP6G175E201
Engine power
119 kW
Displacement
6.75 l
Revolutions at max torque
2000 rpm
Max. torque
810/1400 Nm
No. of cylinders
6
Emission level
Tier 2/EU II

More technical details, like: bucket width, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Swing loader
No
telescopic
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 842H FAQ

When was the Liugong 842H manufactured?

The Liugong 842H was first produced in 2017.

How much does the Liugong 842H wheel loader weigh?

The Liugong 842H wheel loader weighs 12.7 tons.

What are the transport dimensions of the Liugong 842H wheel loader?

The Liugong 842H has a transport length of 7.57 meters, a transport width of 2.48 meters, and a transport height of 3.3 meters.

What is the travel speed of the Liugong 842H wheel loader?

The Liugong 842H has a travel speed of 43 km/h.

What is the standard tyre size of the Liugong 842H wheel loader?

The Liugong 842H wheel loader has standard tyres sized 20.5-25.

What is the outside turning radius of the Liugong 842H wheel loader?

The Liugong 842H wheel loader has an outside turning radius of 5.393 meters.

What is the power rating of the Liugong 842H wheel loader?

The source data does not provide power rating information for the Liugong 842H wheel loader.

What is the material handling capacity of the Liugong 842H in terms of discharge height?

The Liugong 842H has a maximum discharge height of 2.88 meters.

What are the bucket capacity specifications of the Liugong 842H wheel loader?

The Liugong 842H wheel loader has a bucket capacity of 2.3 cubic meters, with a maximum capacity of 4 cubic meters and a minimum capacity of 1.8 cubic meters.

How much is a Liugong 842H Wheel loader (2017u20132025) worth?

The residual value of the Liugong 842H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
